LED crystal film transparent display screens are known by many names in the market. Previously, I wrote an article about similar glass film LED crystal screens, which introduced various market names for LED crystal film screens such as LED soft film screens, LED transparent film screens, LED transparent adhesive screens, glass film crystal screens, and flexible crystal film screens. Today, I will explain what an LED transparent adhesive screen is.
LED transparent adhesive screen is actually a common name for an LED crystal film screen, although it is not widely used in the market. The most scientifically accurate term among the common names for LED crystal film screens is LED crystal film transparent screen. If you want to understand more specifically and in-depth about LED transparent adhesive screens or if you have procurement needs for this product, I suggest you take a good look at the following content.
1. Concept of LED Transparent Adhesive Screen
A flexible LED crystal film screen is a type of LED transparent screen that uses LED bare chip planting technology to mount components on a transparent flexible film etched with a mesh circuit. This type of screen can be cut arbitrarily, display on curved surfaces, has a high light transmittance (up to 95% or more), and offers an excellent ultra-light and ultra-thin visual effect.
2. Reasons for the Common Name LED Transparent Adhesive Screen
First, LED crystal film screens use a soft, transparent film material with good light transmittance, with a light transmittance rate as high as 95%.
Second, the soft film material of LED crystal film screens has excellent flexibility.
Third, the soft film material of LED crystal film screens is coated with adhesive on the back, which can be repeatedly pasted.
Finally, LED crystal film screens use LED bare chip planting technology to mount components on a transparent flexible film etched with a mesh circuit, giving it display functions.
The first three points are very similar to the properties of transparent adhesive tape, and the unique fourth point is its display function. Therefore, LED crystal film screens are colloquially and vividly called LED transparent adhesive screens.
3. Specifications of LED Transparent Adhesive Screen
LED crystal film screens are classified by dot pitch into six specifications: P6, P6.25, P8, P10, P15, and P20. Among these, P6.25 is the most popular specification in the market. P6.25 stands out in terms of both price and display effect, offering unique advantages and a high cost-performance ratio. To understand the features of each specification, refer to the article below.
What are the specifications of LED crystal film screens and which one is most widely used?
4. Specifications Table of LED Transparent Adhesive Screen
| Model | P6 | P6.25 | P8 | P10 | P15 | P20 |
| Module size (mm) | 816*384 | 1000*400 | 1000*400 | 1000*400 | 990*390 | 1000*400 |
| LED light | REE1515 | REE1515 | REE1515 | REE1515 | REE2022 | REE2022 |
| Pixel composition | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 |
| Pixel spacing (mm) | 6*6 | 6.25*6.25 | 8*8 | 10*10 | 15*15 | 20*20 |
| Module pixel | 136*64=8704 | 160*40=6400 | 125*50=6250 | 100*40=4000 | 66*26=1716 | 50*20=1000 |
| Pixel/m2 | 27777 | 25600 | 16500 | 10000 | 6625 | 2500 |
| Brightness | 2000/4000 | 2000/4000 | 2000/4000 | 2000/4000 | 2000/4000 | 2000/4000 |
| Permeability | 90% | 90% | 92% | 94% | 94% | 95% |
| The angle of view ° | 160 | 160 | 160 | 160 | 160 | 160 |
| Input voltage | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz |
| Peak power | 400w/㎡ | 600w/㎡ | 400w/㎡ | 400w/㎡ | 400w/㎡ | 400w/㎡ |
| Average power | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ |
| Work environment | Temperature – 20~55Humidity 10-90% | Temperature- 20~55 Humidity 10-90% | Temperature- 20~55 Humidity 10-90% | Temperature- 20~55 Humidity 10-90% | Temperature- 20~55 Humidity 10-90% | Temperature – 20~55Humidity 10-90% |
| Weight | 1.3kg | 1.3kg | 1.3kg | 1.3kg | 1.3kg | 1.3kg |
| Thickness | 2.5mm | 2.5mm | 2.5mm | 2.5mm | 2.5mm | 2.5mm |
| Drive mode | static state | static state | static state | static state | static state | static state |
| Control system | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight |
| Typical value of life | 100000H | 100000H | 100000H | 100000H | 100000H | 100000H |
| Grayscale level | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
| Refresh rate | 3840Hz | 3840 Hz | 3840 Hz | 3840Hz | 3840 Hz | 3840 Hz |
5. Advantages and Features of LED Transparent Adhesive Screen
High brightness: LED crystal film screens have extremely high brightness, ensuring clear visibility in bright environments, allowing viewers to see the screen content clearly in any lighting conditions. Low energy consumption: LED crystal film screens have extremely low energy consumption, making them more energy-efficient compared to traditional screens, which helps reduce operating costs.
Easy to drive: LED crystal film screens use advanced driving technology, allowing for easy and quick control of screen displays, enhancing overall display effects.
Wide viewing angle: LED crystal film screens have a wide viewing angle, allowing viewers to clearly see the screen content from any angle, enhancing the viewing experience.
Lightweight and portable: LED crystal film screens are lightweight and portable, easy to install and dismantle, convenient for transportation and movement.
Durable and non-yellowing: LED crystal film screens are made using anti-UV transparent crystal film adhesive and vacuum encapsulation processes, providing high transparency and clarity, and are durable, maintaining their color and clarity without yellowing for up to 5 years.
Flame retardant: LED crystal film transparent screens use flame-retardant materials and reasonable circuit design to control fire risks from the source, ensuring higher safety performance.

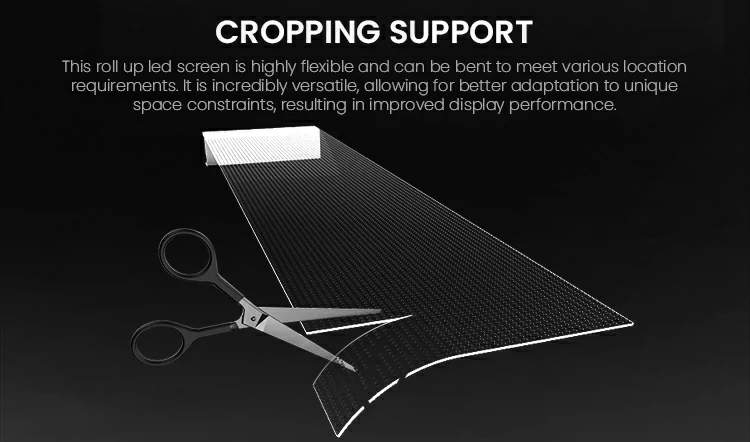

Can be cut arbitrarily: LED crystal film screens are extremely easy to install, can be directly pasted on the inside of glass, and can be cut to fit the size of the glass without damaging the building structure or affecting indoor lighting.
Freely bendable: LED crystal film screens, due to their flexibility and bendability, break the traditional rigid transparent screen frame concept, making them suitable for various application scenarios such as commercial glass railings, museums, science and technology museums, high-end shopping malls, and hotel lobbies.
6. Application Fields of LED Transparent Adhesive Screen
The LED crystal film screen industry is ushering in new development opportunities. They are widely used in the following places:
Vehicle displays: taxis, buses, etc.
Glass curtain walls: commercial buildings, curtain walls, etc.
Glass railings: commercial center stair railings, sightseeing railings, etc.
Interior decoration: partition glass, shopping center ceilings, etc.
Everything about what an LED transparent adhesive screen is, as well as all the performance characteristics and application fields of the LED transparent adhesive screen, has been shared with you. If you have any further questions, feel free to contact us via email.
