About P10 invisible transparent LED film

This P10 invisible transparent LED screen is soft, has its own adhesive backing has a high transparency of 90%-95%, and can clearly display video and image content even in the sun. Our invisible transparent LED screen adopts a thin and light modular design. It can be cut, spliced, and pasted for installation. The size can be flexibly controlled and can be installed on various flat surfaces, curved glass, or acrylic. It can display suspended naked-eye 3D video effects on any transparent medium, and the on-site effect is more shocking.

Eight features of transparent hologram film screen

LEDHigh transmittanceEasy to installAB version
The LED transparent film screen without steel structure, just stick the thin screen slightly and connect the power signalThe led transparent film screen transmittance is more than 90%, which does not affect the glass daylightingFlame retardant
FlexibleLight and thinUV resistanceFlame retardanyt
The transparent led display film for Glass and transparent acrylic panelsas thin as 2.5mm, as light as 5kg/㎡5~10 years can ensure no yellowingflame retardant grade V1

Invisible transparent LED screen application field

Invisible transparent LED screens are widely used in creative displays, shopping malls, retail windows, exhibition displays, and other scenes.

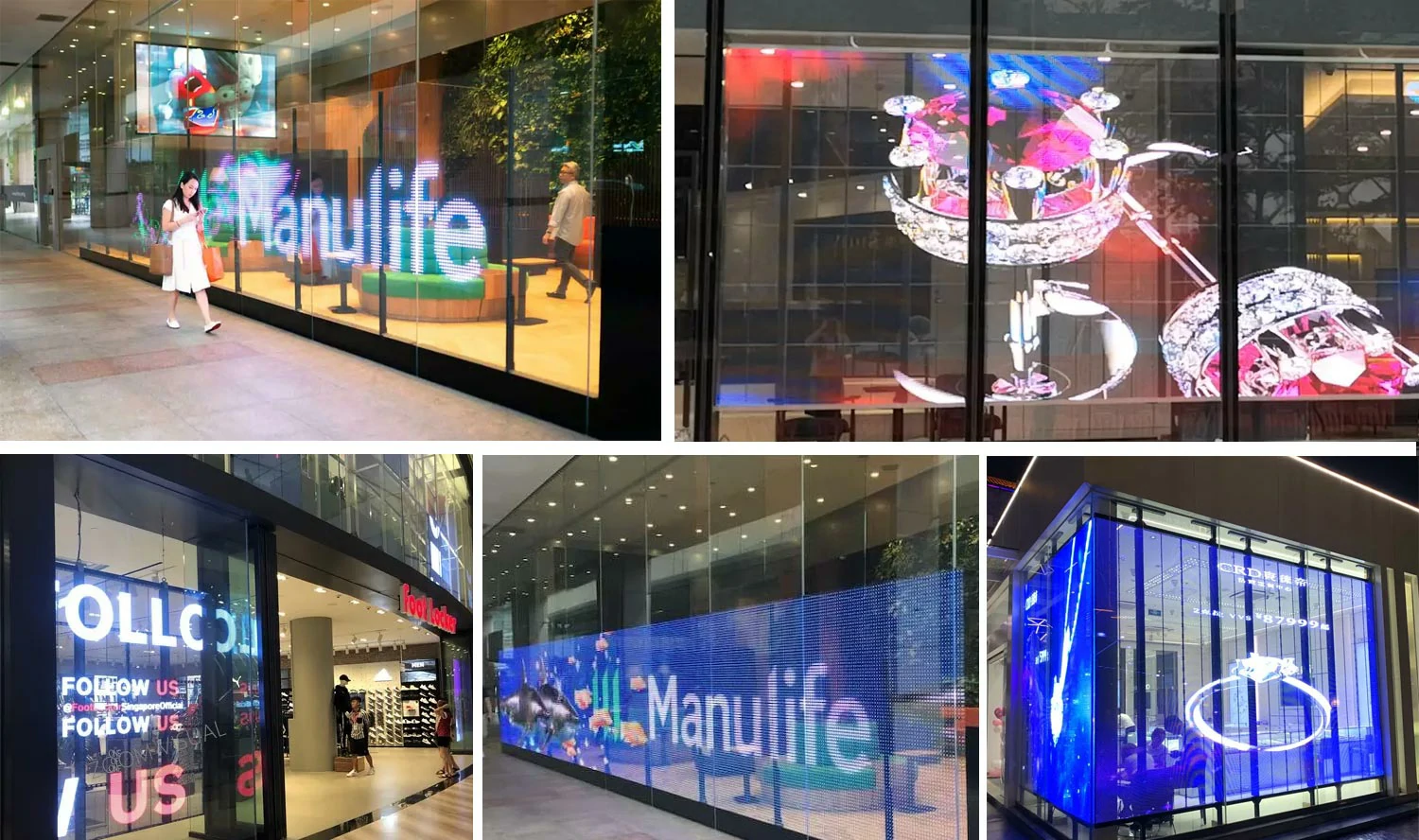

p10 indoor led display

P10 invisible transparent led film install Detailed Installation Video

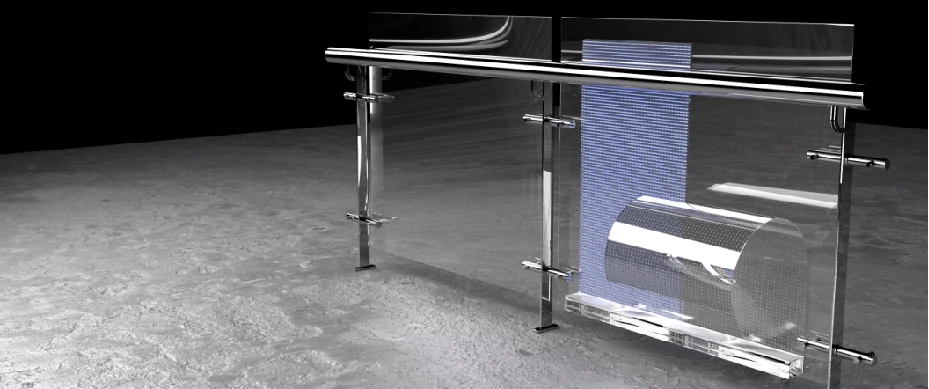

led crystal film screens 02
led crystal film screens 01

H2-3: transparent screen film screen specifications

ModelP6P6.25P8P10P15P20
Module size (mm)816*3841000*4001000*4001000*400990*3901000*400
LED lightREE1515REE1515REE1515REE1515REE2022REE2022
Pixel compositionR1G1B1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B1
Pixel spacing (mm)6*66.25*6.258*810*1015*1520*20
Module pixel136*64=8704160*40=6400125*50=6250100*40=400066*26=171650*20=1000
Pixel/m22777725600165001000066252500
Brightness2000/40002000/40002000/40002000/40002000/40002000/4000
Permeability90%90%92%94%94%95%
The angle of view °160160160160160160
Input voltageAC110-240V50/ 60HzAC110-240V50/ 60HzAC110-240V50/ 60HzAC110-240V50/ 60HzAC110-240V50/ 60HzAC110-240V50/ 60Hz
Peak power400w/㎡600w/㎡400w/㎡400w/㎡400w/㎡400w/㎡
Average power200w/㎡200w/㎡200w/㎡200w/㎡200w/㎡200w/㎡
Work environmentTemperature – 20~55Humidity 10-90%Temperature- 20~55 Humidity 10-90%Temperature- 20~55 Humidity 10-90%Temperature- 20~55 Humidity 10-90%Temperature- 20~55 Humidity 10-90%Temperature – 20~55Humidity 10-90%
Weight1.3kg1.3kg1.3kg1.3kg1.3kg1.3kg
Thickness2.5mm2.5mm2.5mm2.5mm2.5mm2.5mm
Drive modestatic statestatic statestatic statestatic statestatic statestatic state
Control systemNova/ColorlightNova/ColorlightNova/ColorlightNova/ColorlightNova/ColorlightNova/Colorlight
Typical value of life100000H100000H100000H100000H100000H100000H
Grayscale level16bit16bit16bit16bit16bit16bit
Refresh rate3840Hz3840 Hz3840 Hz3840Hz3840 Hz3840 Hz

If you have any questions about the product or want to know more about price specifications, please fill out the form and send us a letter. Libra will respond to you within 12 hours.


    INDUSTRY  APPLICATION

    ultra thin flexible led display6

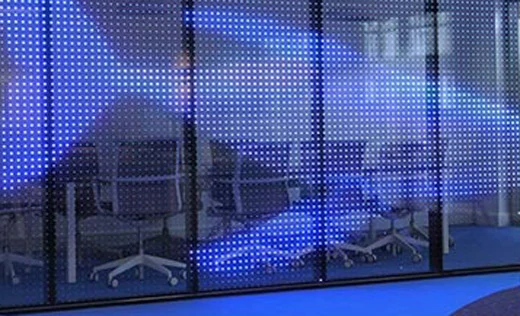

    ultra thin flexible led display4

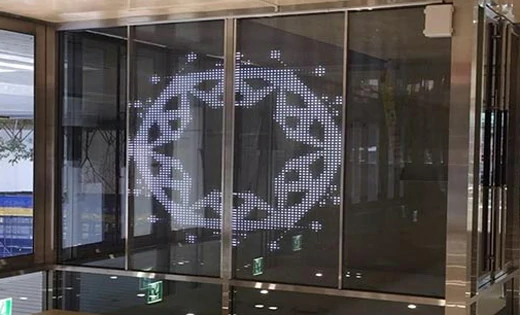

    ultra thin flexible led display5
    SHARE IT WITH YOUR FRIENDS!

    Related Projects

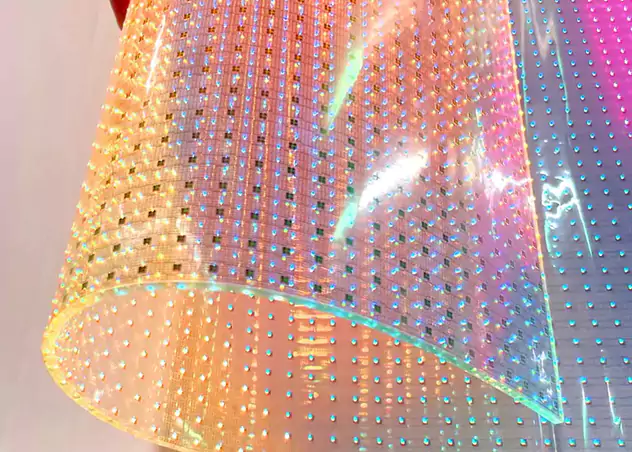

    flexible led transparent film screen 1

    P8 flexible led transparent film screen

    transparent led film hard screen 2

    Semi-outdoor adhesive Transparent led film hard screen

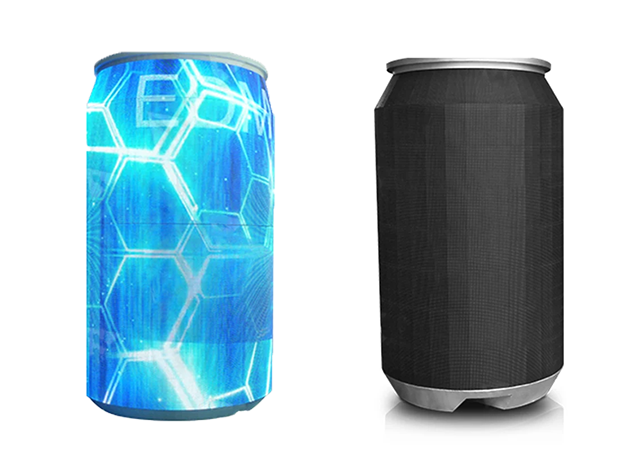

    can led display 1
