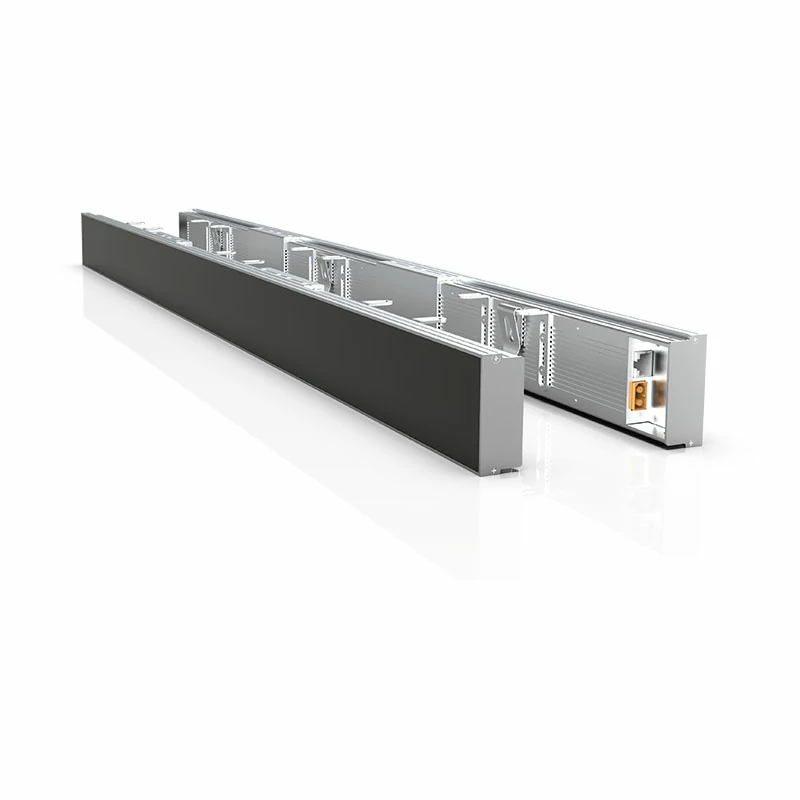

about P1.25 LED shelf display screen
The indoor LED shelf display screen is synchronous and asynchronous. The screen adopts COB packaging technology. Unlike the traditional SMD surface mount packaging, COB technology integrates the luminous RGB chip on the PCB board instead of soldering the LED lights one by one on the PCB board. This technology effectively improves the reliability, light color, and protection performance of the LED shelf screen. Our LED shelf digital display can be debugged, uploaded, and edited through USB, wireless wifi, 4G, and network ports. The LED shelf strip screen is different from the stretched bar LCD display. The LED shelf edge display supports splicing. Long rows of shelves can be spliced into a whole screen through multiple LED shelf digital screens, making the shelf edge display neater and more orderly.
P1.25 LED shelf display features
Synchronous and asynchronous display control: USB, Wi-Fi, 4G, Network, etc.
Low power consumption extends life: 24V low voltage power supply, low power consumption, support power adapter. Excellent heat dissipation performance, and low light decay, direct heat dissipation of PCB board, extending service life.
Screen length optimization: LED shelf strip screen can be up to 4.8 meters long) general standardized profile aluminum material, size is 300x60mm, seamless splicing assembly.
LED shelf screen: The screen supports IP65 and is dustproof, anti-oxidation, anti-static and impact-resistant.
Video Angle: The horizontal viewing angle can reach 170 degrees, which is wider than conventional LED screens. Refresh rate and low grayscale, refresh rate>3840HZ, grayscale 14Bit.

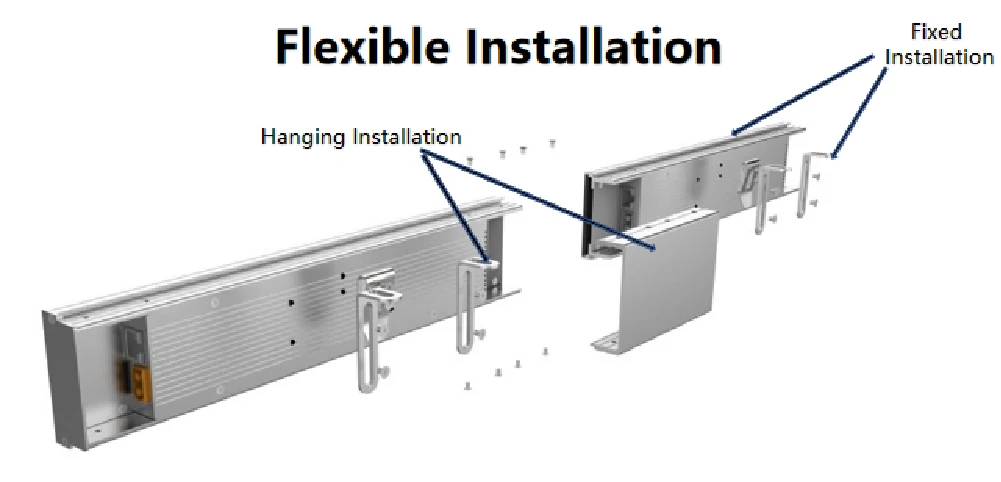

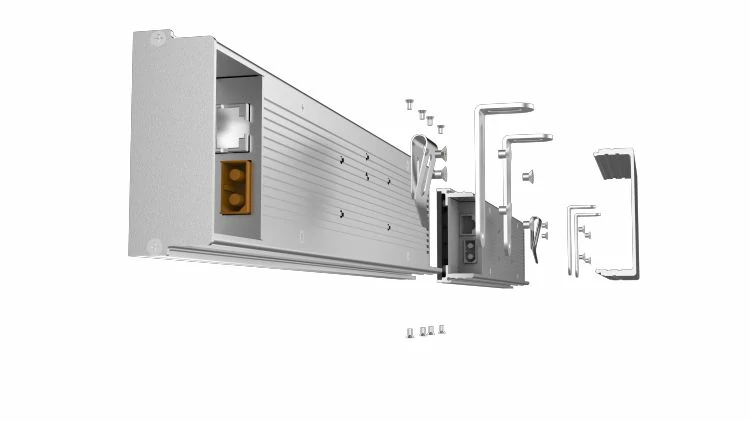

LED shelf display installation methods are diverse

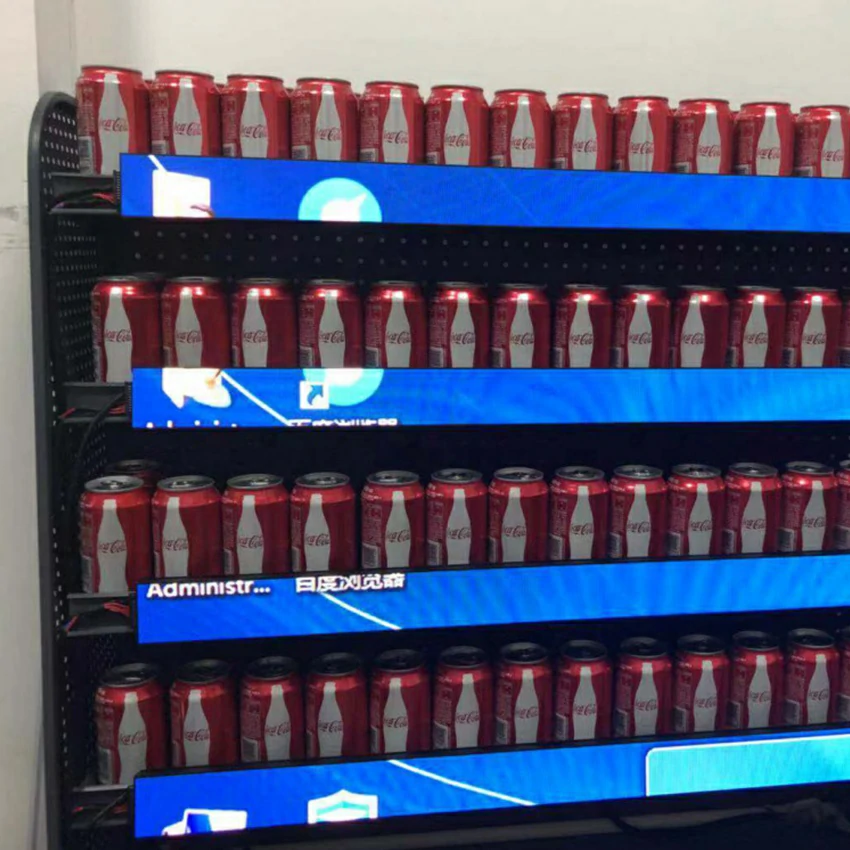

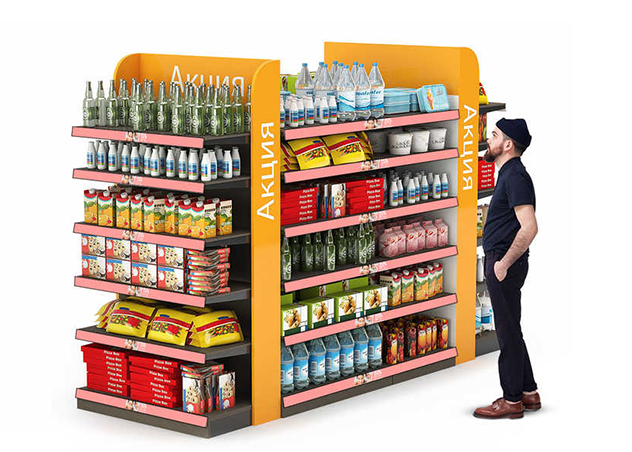

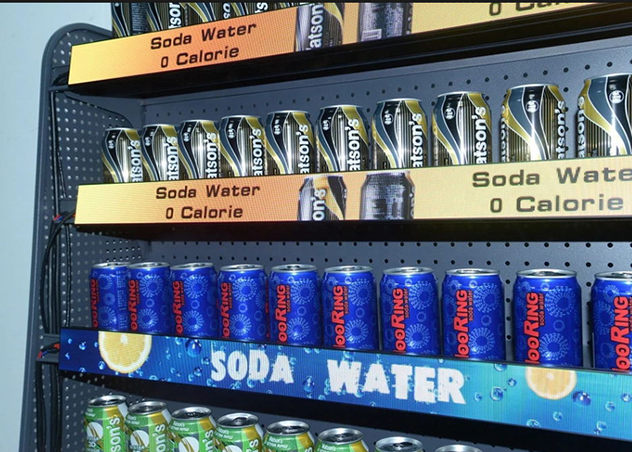

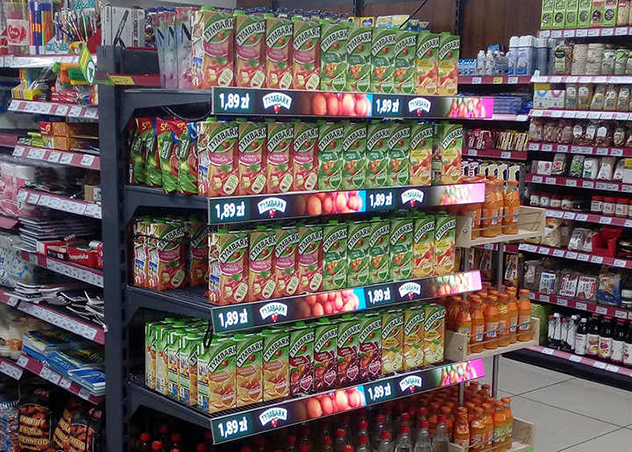

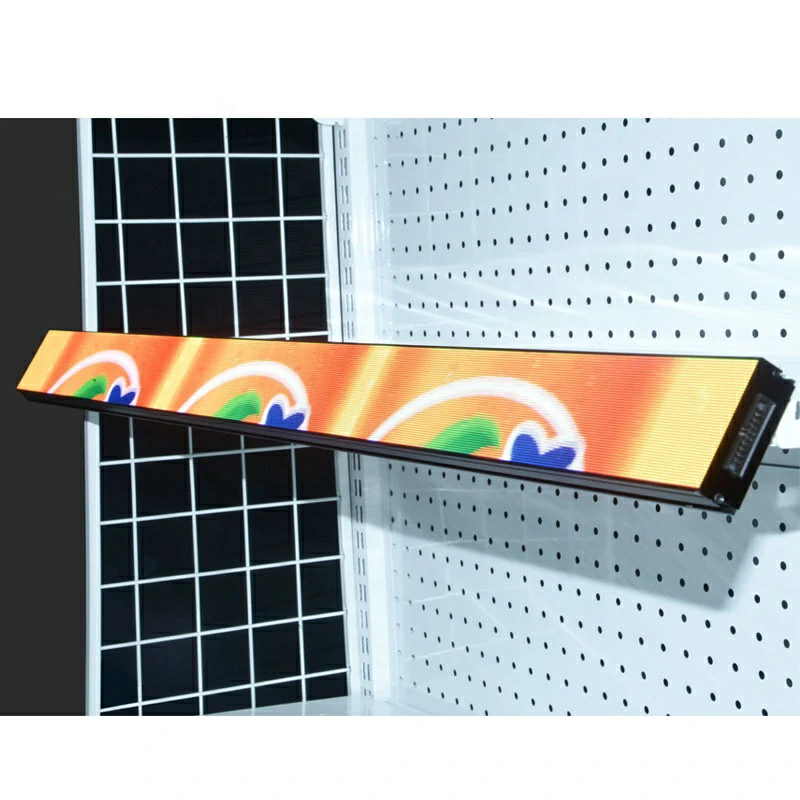

P1.25 LED shelf display screen is small, light weight, compact, and portable, plug and play. It is widely used in various indoor places, giving you a different visual experience.

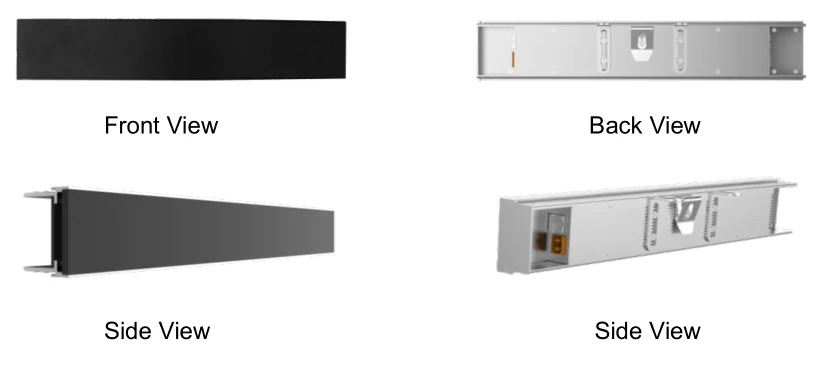

LED shelf display screen with different viewing angles
P1.25 LED Shelf Display Specifications
| Item | Specification | |
|---|---|---|
| Technical Parameter | Pixel Pitch（mm） | 1.25 |
| pixel structure | COB 1R1G1B | |
| Pixel Density（dot/m²） | 640000 | |
| Cabinet dimension(W×H×D) mm | 300x60x23.5 | |
| Cabinet resolution (W×H)点 | 240×45 | |
| Cabinet material | Aluminum | |
| Scan | 1/45 | |
| Flatness of the box body（mm） | ≤0.10 | |
| Gray scale（Bit） | 14 | |
| Lamp surface protection level | IP65 | |
| Cabinet weight（KG） | 0.35 | |
| brightness | 50-600cd/㎡ | |
| colour temperature | 3200-9300K adjustable | |
| Optical Characteristics | luminance uniformity | ≥98% |
| Chromaticity uniformity | Within 0.003Cx,Cy | |
| H/V Perspective | ≥170° | |
| Contrast Ratio | ≥10000:1 | |
| Single point chromaticity correction | support | |
| Single point brightness correction | support | |
| Electrical And Environmental Characteristics | Driving | Constant current drive |
| Frame Frequency | 50/60 Hz | |
| Refresh Rate | ≥3840Hz | |
| Power interface mode | XT60 | |
| Signal Interface | USB、RJ45 | |
| Input Voltage DC | 24V | |
| Input Current DC | 0.6A | |
| Peak power consumption | 15W | |
| Average Power | 5W | |
| Ambient Temperature | -20℃～+80℃ | |
| Working environment humidity | 10%～95%RH |
If you have any questions about the product or want to know more about price specifications, please fill out the form and send us a letter. Libra will respond to you within 12 hours.
