LED holographic posters screen various specifications that affect video display

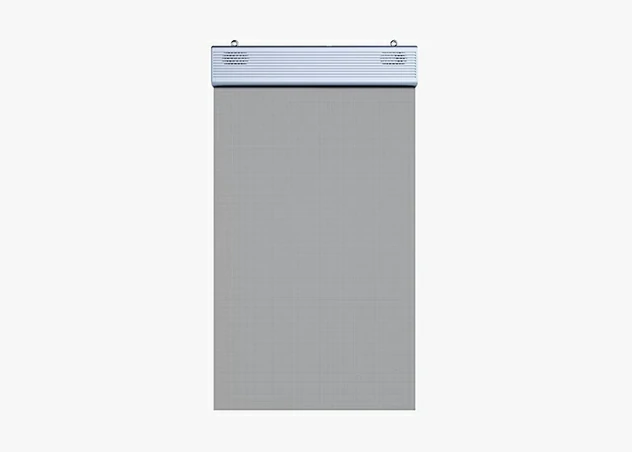

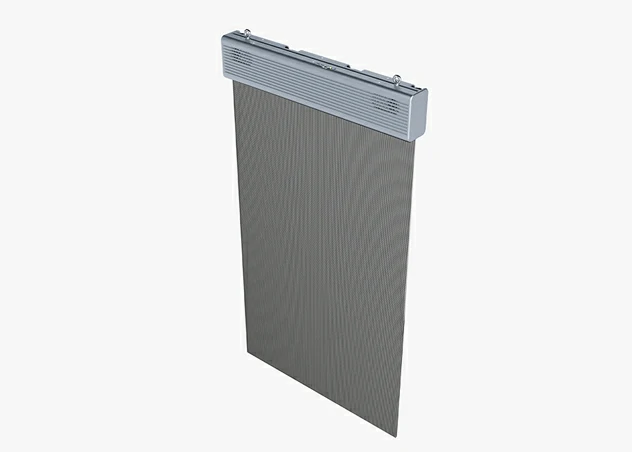

LED holographic poster screen features

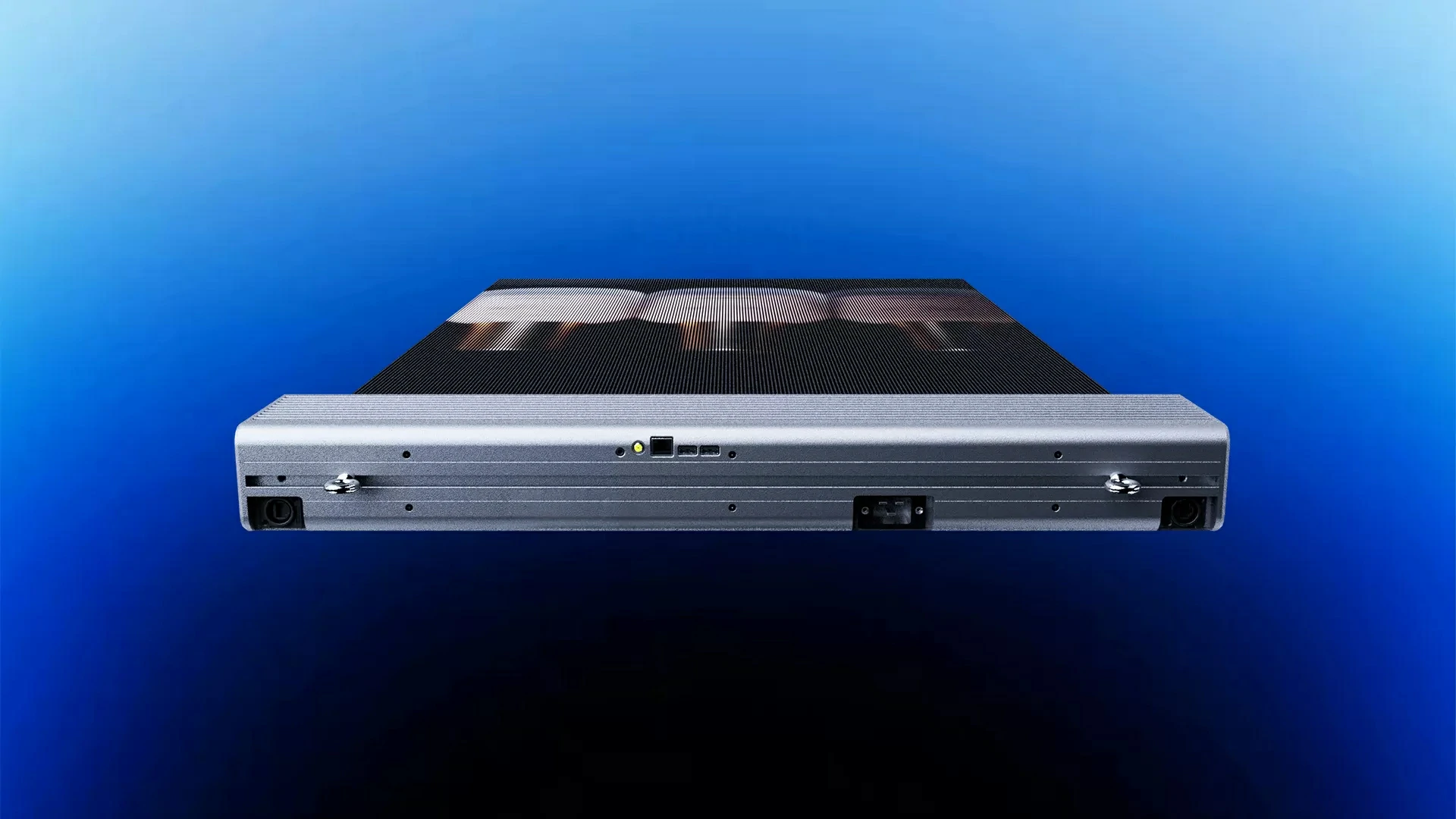

Standard all-in-one machine, built-in sending card, only one power supply cable, plug-in and play.

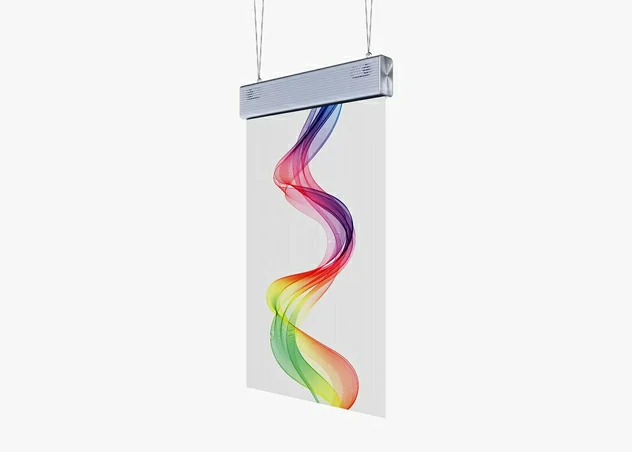

Standard hanging structure, easy installation, widely applied in different installation environments.

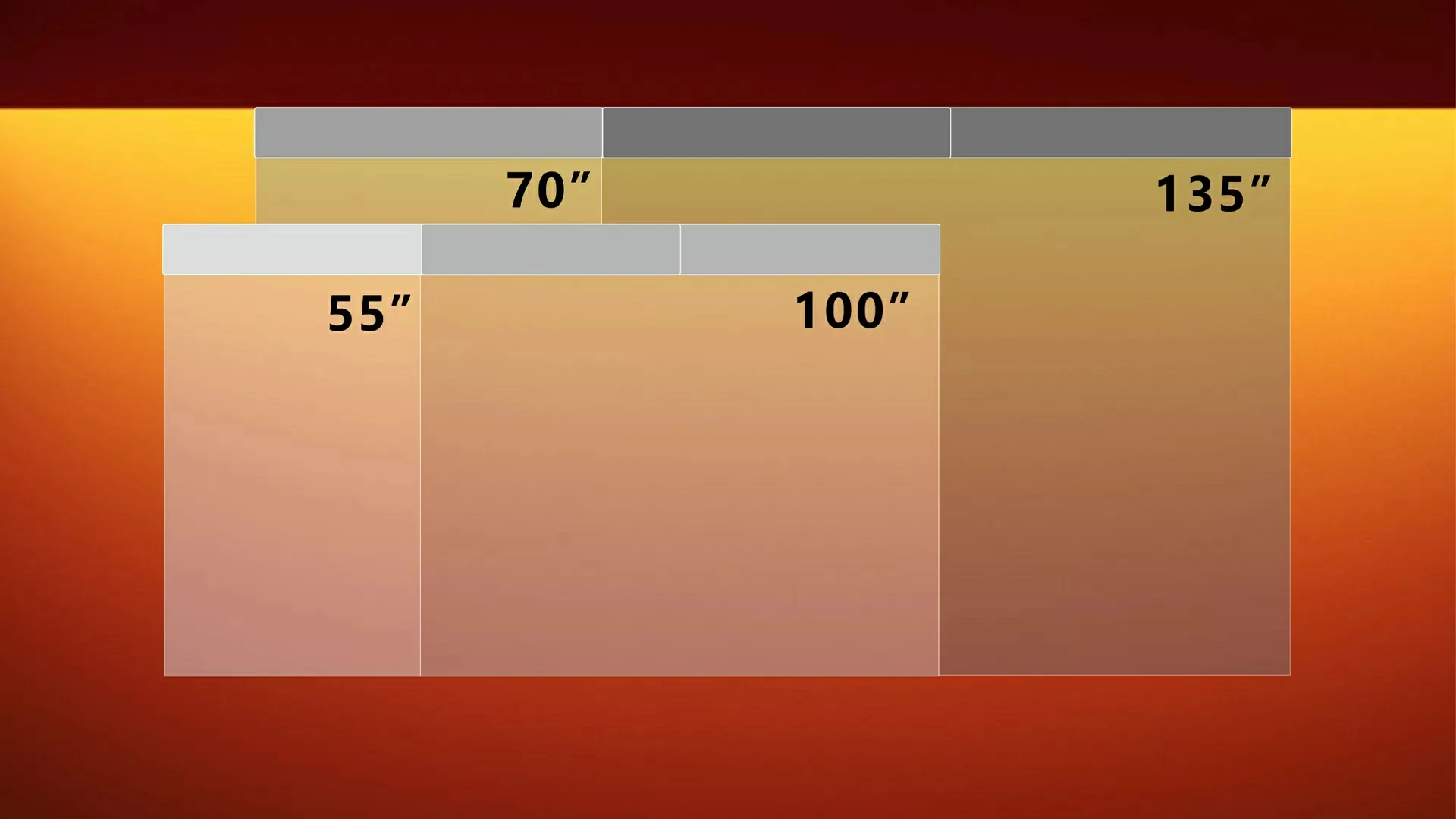

Free combined size, 55″, 70″, 100″, 135″, to satisfy different display requirements.
The whole screen is transparent and invisible, it does not block any view or light.

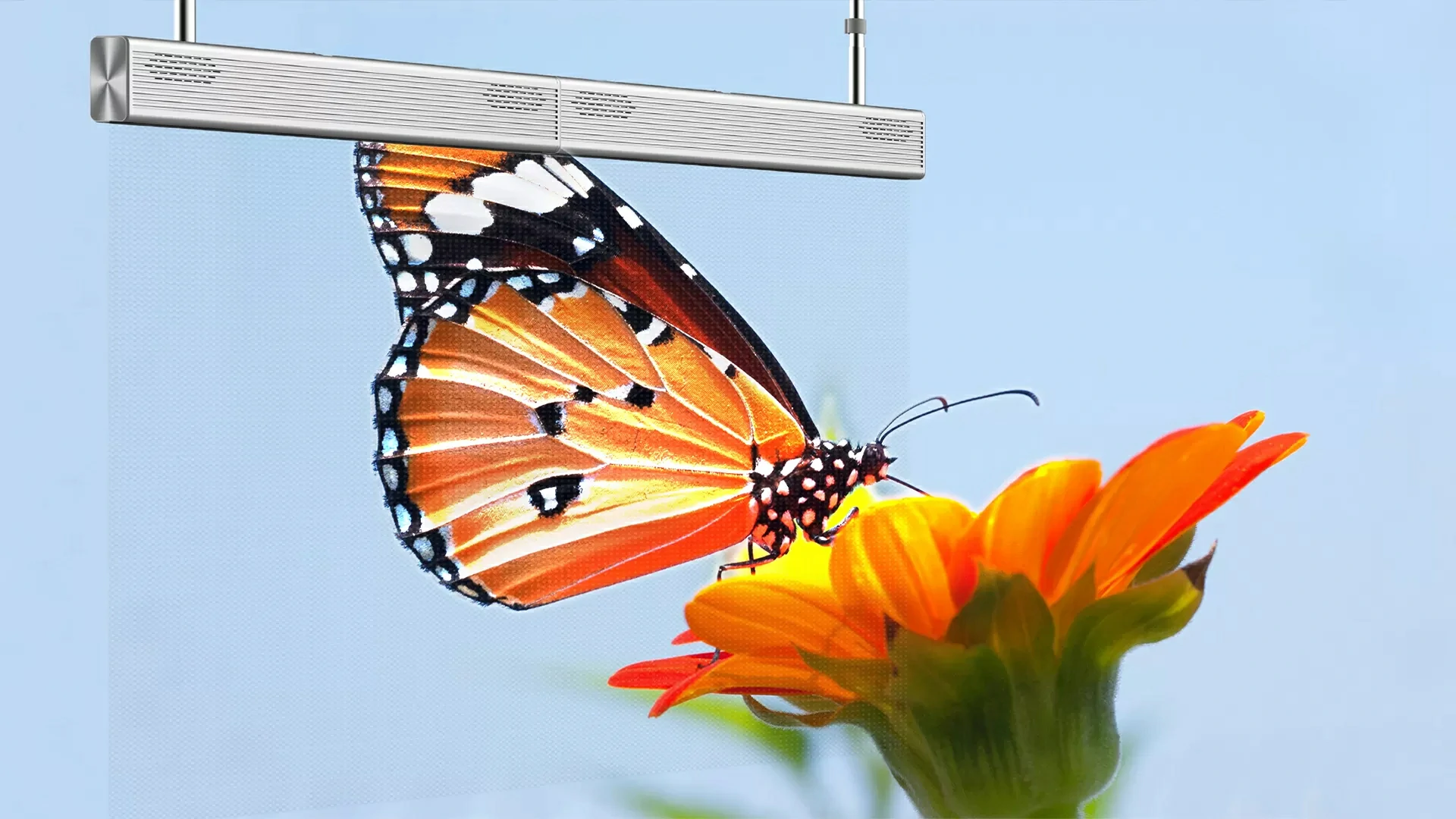

Floating image, bare-eye AR visual effect, eye-catching and attractive.
High-resolution display quality, stable video, and image, rich and delicate colors.

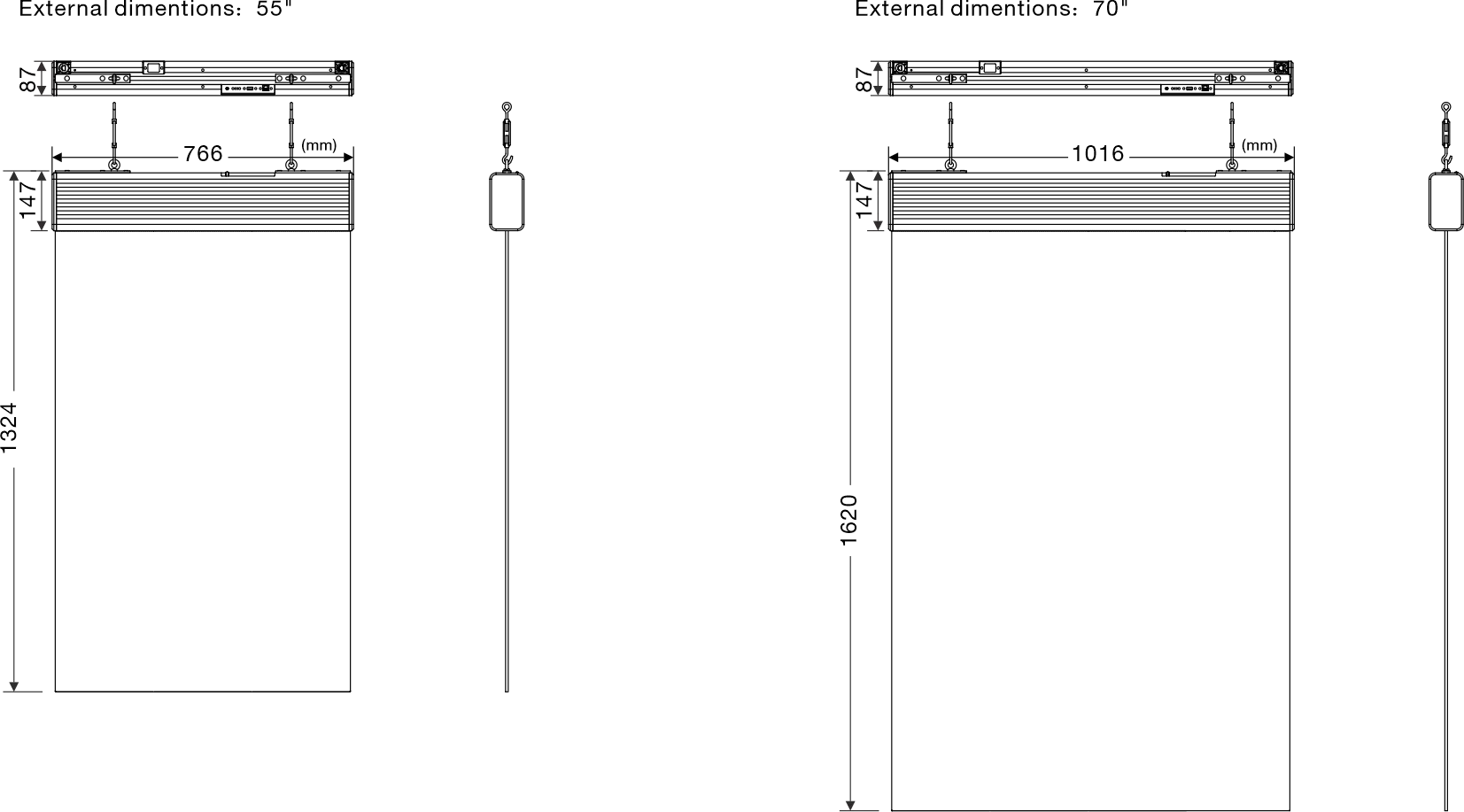

hologram window display dimension table
hologram window display Topology
| item | p3-55 | p3-70 |
|---|---|---|
| Pixel Pitch (mm) (horizontal/vertical) | 3.91/3.91 | 3.91/3.91 |
| Pixel Density (dot/m²) | 65536 | 65536 |
| Transparency Rate | 80% | 80% |
| Display Dimension (mm) (w*h) | 750×1200 | 1000×1500 |
| Profile Dimension (mm) (w*h) | 766x1324x87 | 1016x1620x87 |
| Resolution (dot) (w*h) | 192×300 | 256×376 |
| Brightness(cd/m²) | ≥3000 | ≥2000 |
| Weight (kg/set) | 11(without glass)/25(with glass) | 14(without glass)/35(with glass) |
| Scanning Mode | Static Driving (Single Pixel Single Control) | |
| Encapsulation Type | Light Board & Driving Board Integrated | |
| Lifespan | ≥ 100,000.00 hours | |
| Pixel Configuration | 16bit | |
| Maximum Power Consumption (w/m²) | 1000 | 1000 |
| Average Power Consumption (w/m²) | 375 | 375 |
| Control System | Colorlight / Novastar | |
| Input Voltage | AC100~240V 50/60Hz | |
| Working Voltage for Module | DC4.2V ± 0.2V | |
| Working Temperature | Temperature -20℃ ~50℃ | |
| Working Humidity | Humidity 20%RH ~ 85%RH (Without Condensation) | |
| Storage Temperature | Temperature – 20℃ ~ 60℃ | |
| Storage Humidity | Humidity 10%RH ~ 85%RH (Without Condensation) | |
| Protection Degree | IP20 | |
| Frame Material | Aviation Aluminum Alloy | |
| Installation Environment | Indoor | |
| Packing Way | Pearl Cotton+Carton/Flight Case | |
| Statement: The relevant parameters in the table are subject to real-time updates, and the data is for reference only. The upgrade will be made without further notice. | ||
If you have any questions about the product or want to know more about price specifications, please fill out the form and send us a letter. Libra will respond to you within 12 hours.
INDUSTRY APPLICATION

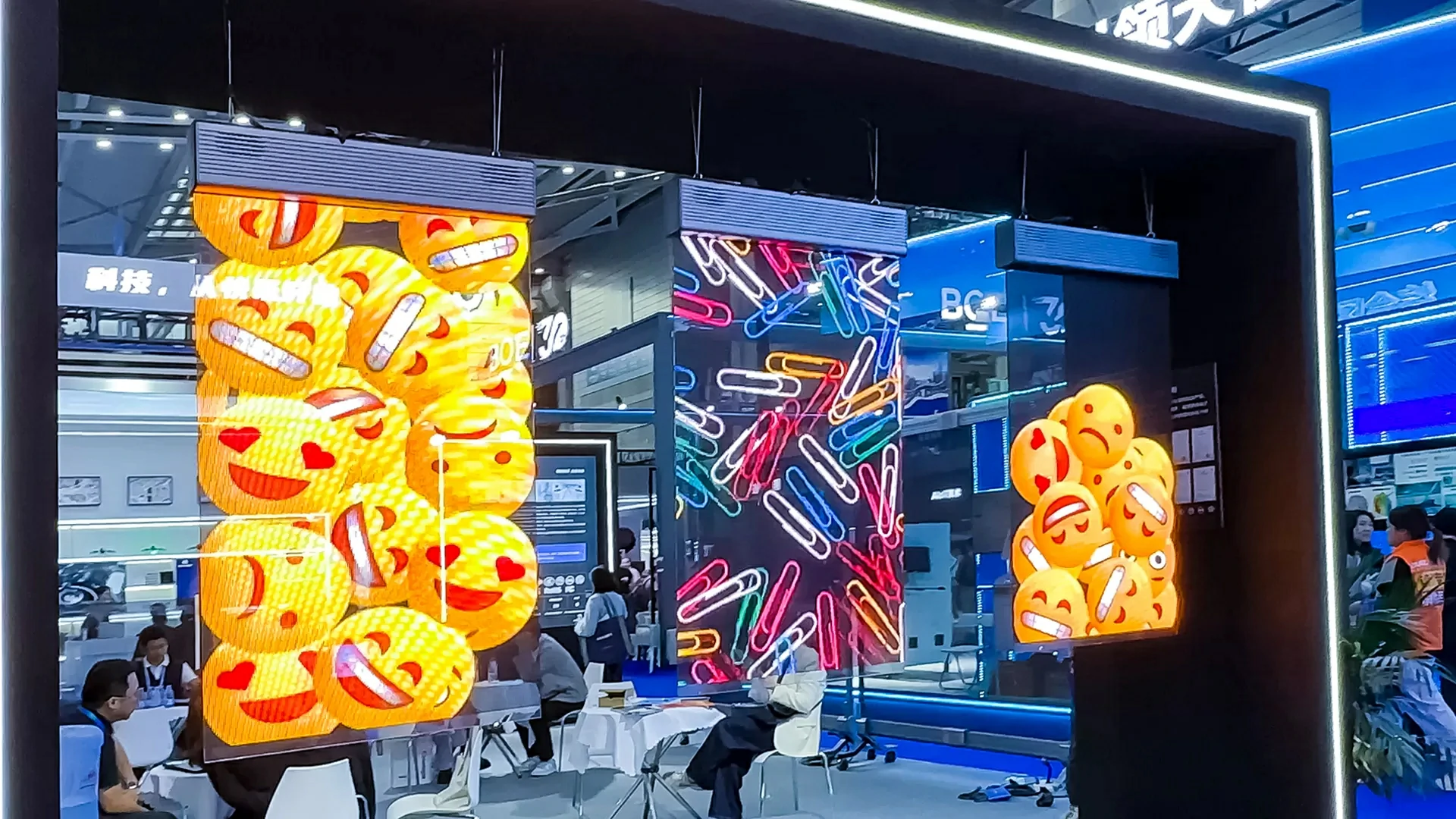

Exhibition

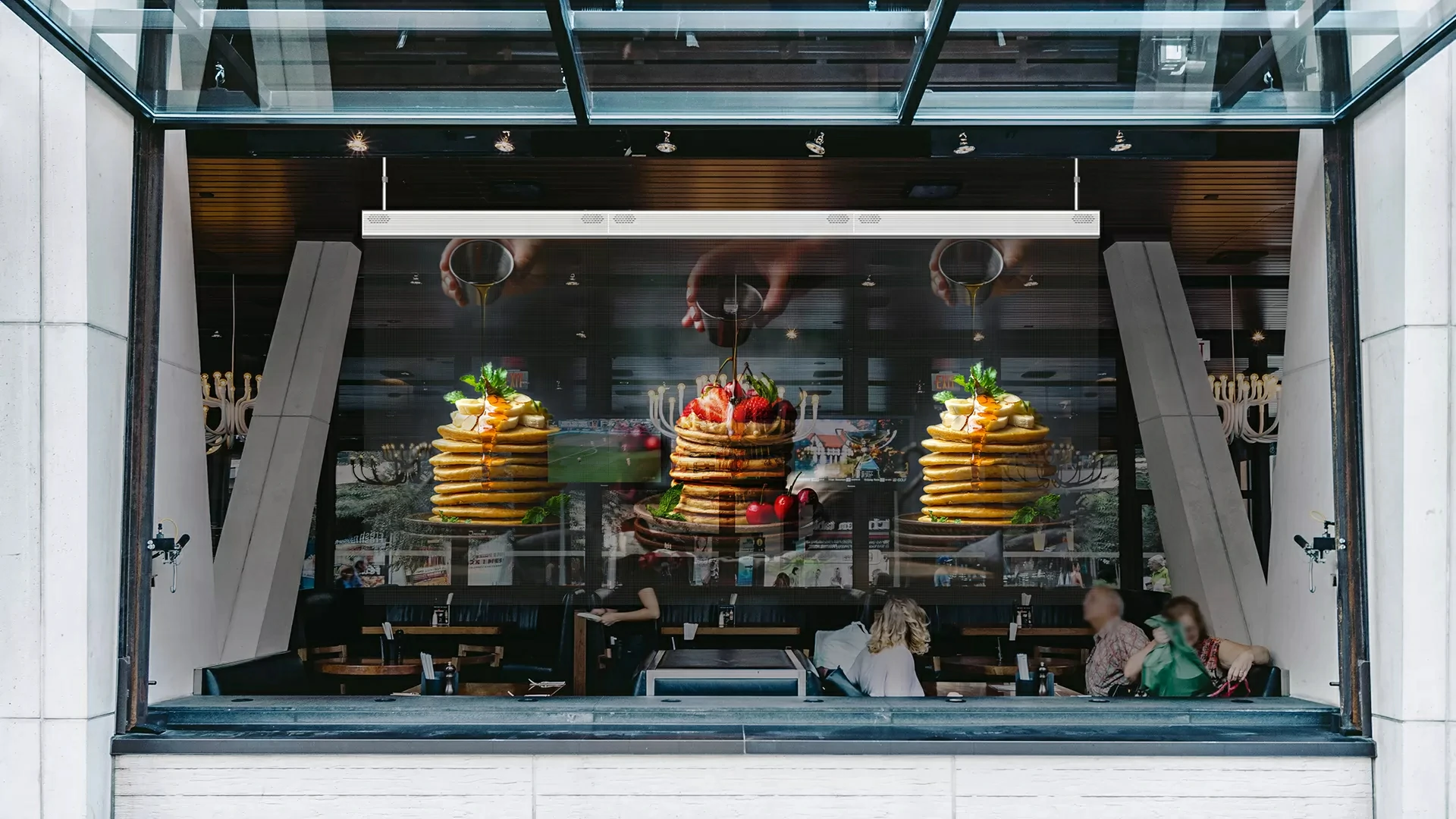

Window
shopping mall
