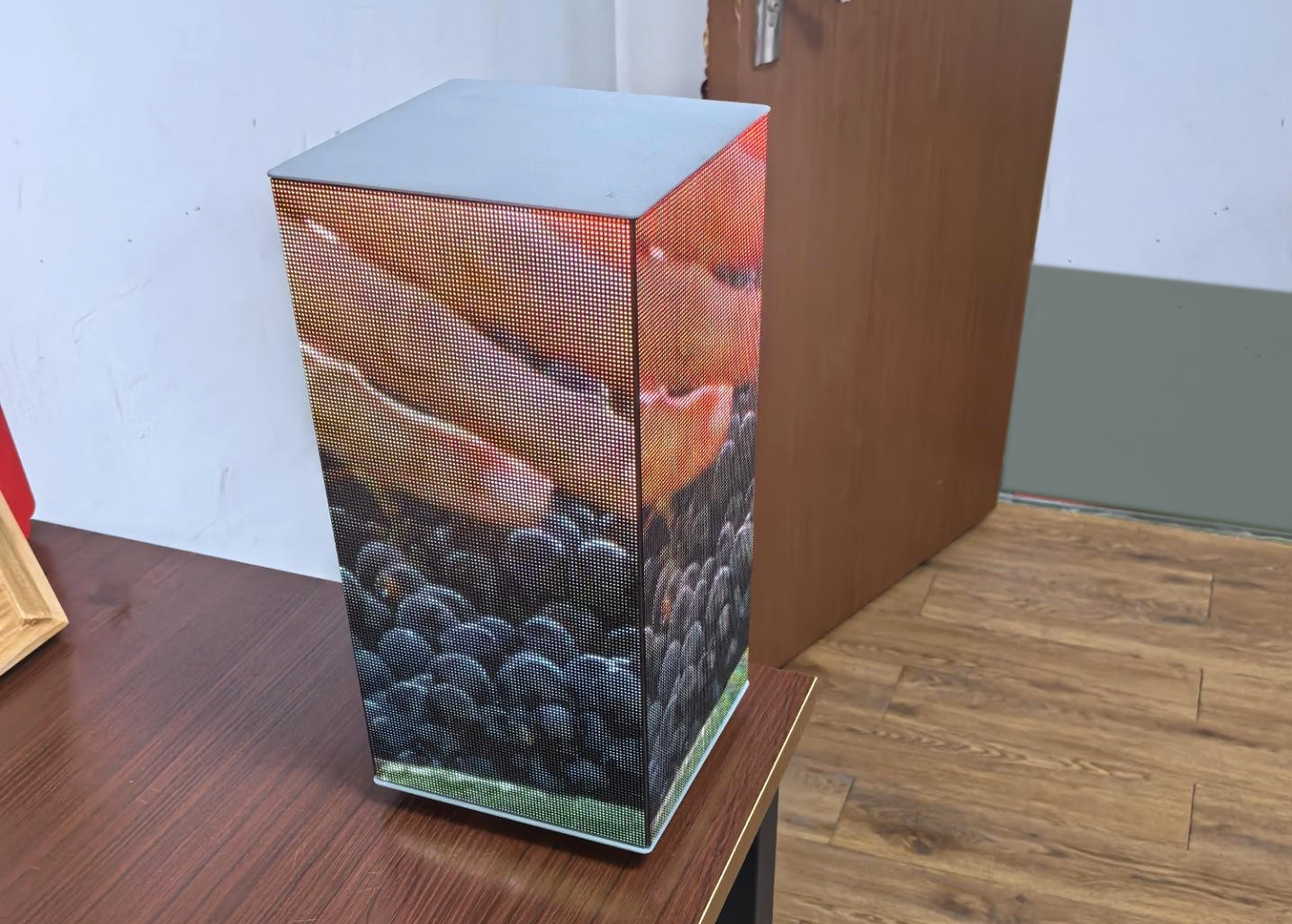

P1.86 indoor table cube led display Features

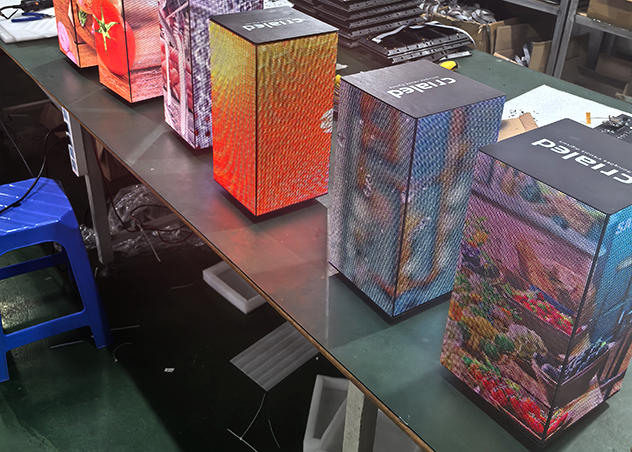

the latest table cube led display
table led cube screen parameters
| Cabinet parameters | ||
| 1 | Cabinet size | 160mm×160mm×320mm |
| 2 | Cabinet features | Surround display |
| 3 | Cabinet resolution | 86×172=14792 dots |
| 4 | Number of modules | 1pcs per side |
| 5 | Cabinet weight | Net weight 6KG/unit, including carton 7KG |
| 6 | Installation method | The finished product is placed on the table by default |
| Scope of application | ||
| 1 | Dot density | 288709 dots/㎡ |
| 2 | Brightness | 600cd/㎡ (adjustable) |
| 3 | Contrast | ≥2000:1 |
| 4 | Horizontal/vertical viewing angle | 140°(horz.), 140° (vert.) |
| 5 | Flatness | ≦0.3mm |
| 6 | Color uniformity | Within ±0.003 Cx,Cy |
| 7 | Power | 5V40A/5V60A |
| System control parameters | ||
| 1 | Control host operating system | Windows 10 |
| 2 | Asynchronous control box | Lifang Box/TB1/Moka (supports specified and customized) |
| 3 | Software | Customized player (CG-V8) |
| 4 | Receiving card | Kaishida G12 |
| 5 | Grayscale | 16384 levels |
| 6 | Number of signal color processing bits | Red, green, blue ≥ 16bit each |
| 7 | Frame rate | 50Hz -60Hz |
| 8 | Refresh rate | 3840Hz |
| 9 | Brightness adjustment | Manual/automatic/programmable |
| 10 | Control method | Mobile phone control, supports remote control (4G module can be added separately) |
| 11 | Control method | Wifi hotspot mobile phone APP control |
| table cube led screen operating parameters | ||
| 1 | Working voltage | 12V |
| Battery parameters | Power 444WH, charging protection 12.6V, discharge protection 8.4V, maximum discharge current 15A, maximum charging current 15A, battery life 1200 cycles | |
| 2 | Peak power consumption | ≤200W/unit |
| 3 | Average power consumption | ≤60W/unit |
| 4 | Continuous working time | 6-8 hours continuous use |
| 5 | Mean time between failures | ≥10000 hours |
| 6 | Service life | ≥100,000Hours |
If you have any questions about the product or want to know more about price specifications, please fill out the form and send us a letter. Libra will respond to you within 12 hours.
