Four Features Of holographic transparent LED screen
High transparency of holographic LED screen
LED screen transparent is a disruptive product in the LED display industry. There is no visible frame and stripes between the screens. When the holographic LED screen is pasted on the glass panel, it can provide up to 90% high visual transparency. It is one of the best ways to turn ordinary glass curtain walls into LED screen glass.
LED screen transparent Light & Thin
The LED transparent screen weighs only 6 kg per square meter and is 1.8 mm thick. It does not increase the weight of the glass panel or structure and reduces logistics difficulty and cost.
LED screen transparent and flexible
LED screen transparent modules can be bent or cut to meet actual needs. suitable for curved glass panels to create LED screen glass or customized LED transparent screens.
holographic led screen Module dimension & control box

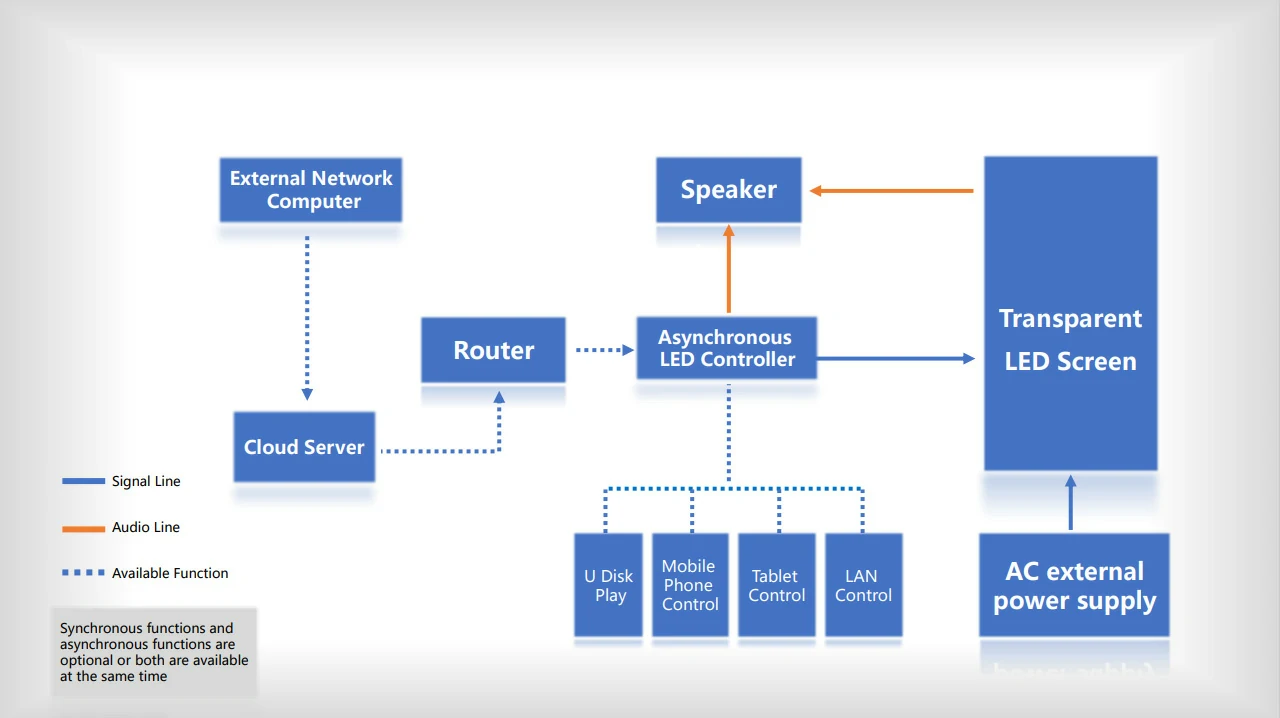

System Topology of LED see through screen
| Model | RS-P6.25 | RL-P6.25 |
| Pixel spacing | L(6.25mm)W(6.25mm) | L(6.25mm)W(6.25mm) |
| Pixel density | 25660 points /㎡ | 25660 points /㎡ |
| Module size | 1200mm*250mm | 1500mm*250mm |
| LED light | 1515（light drive in one） | 1515（light drive in one） |
| Breakpoint continuation | √ | √ |
| Thickness | 1-3mm | 1-3mm |
| Power Consumption | Avg：200W/㎡，Max：600W/㎡ | Avg：200W/㎡，Max：600W/㎡ |
| Weight | Less than3kg/㎡ | Less than3kg/㎡ |
| Permeability | ＞80% | ＞80% |
| Life span | ＞100,000 | ＞100,000 |
| Power supply requirement | 220V±10%；AC50HZ，Three-phase five-wire | 220V±10%；AC50HZ，Three-phase five-wire |
| Brightness | White balance brightness 2000-4500cd/㎡； automatic and manual adjustment according to ambient brightness | White balance brightness 2000-4500cd/㎡； automatic and manual adjustment according to ambient brightness |
| Angle of view | H160，V140 | H160，V140 |
| Grayscale level | ≥16(bit) | ≥16(bit) |
| Color Temperature | 5500K-15000K（Adjustable) | 5500K-15000K（Adjustable) |
| Drive mode | static state | static state |
| Attenuation rate | Less than 0.05% in 2 years | Less than 0.05% in 2 years |
| Refresh rate | >3840HZ | >3840HZ |
| MTBF | > 10000H | > 10000H |
| LED bead failure rate | less than one ten thousandth and is discretely distributed | less than one ten thousandth and is discretely distributed |
| Control system | Colorlight/Nova Synchronous/Asynchronous | Colorlight/Nova Synchronous/Asynchronous |
| Use environment | ◆Working environment：-10～+65℃/10～90%RH ◆Storage environment：-40～+85℃/10～90%RH | ◆Working environment：-10～+65℃/10～90%RH ◆Storage environment：-40～+85℃/10～90%RH |
| Installation mode | Mounting, lifting, fixing, support any size cutting, bending | Mounting, lifting, fixing, support any size cutting, bending |
If you have any questions about the product or want to know more about price specifications, please fill out the form and send us a letter. Libra will respond to you within 12 hours.
