technical characteristics of ultra-thin flexible LED screen

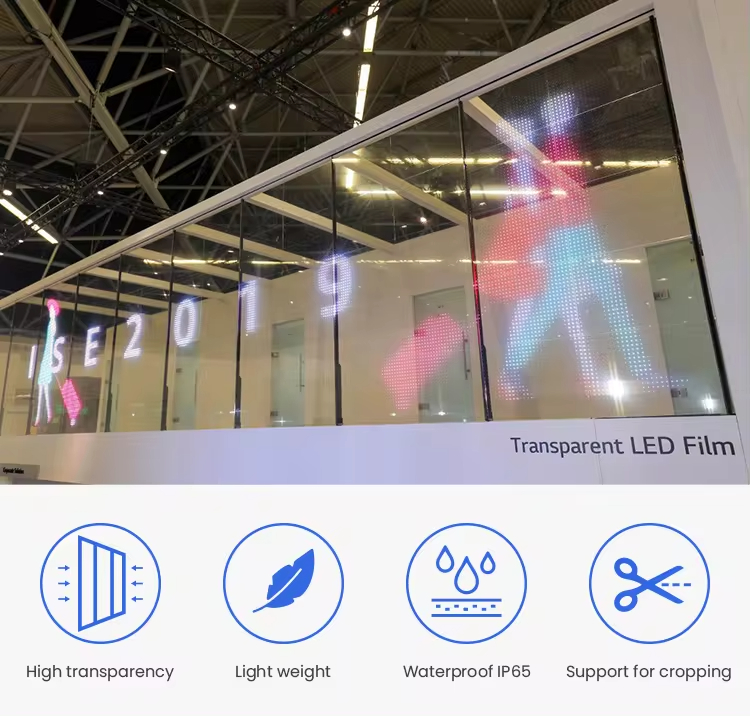

led crystal film screen 01

The crystal LED flexible film screen is an upgraded and innovative design based on the conventional LED transparent screen, which removes the rigid light bar or PCB board, making the screen body thinner, more transparent, flexible, and bendable.
The flexible LED film screen adopts the LED lamp bead bare crystal ball-planting technology, the lamp board adopts the transparent crystal film, the surface is etched with a transparent mesh circuit, and the components are pasted on the surface after the vacuum sealing process.
It can be directly attached to the glass curtain wall without damaging the original structure of the building;
When not playing, the screen is invisible, does not affect indoor lighting, and when viewed from a distance, the installation traces of the screen cannot be seen;
The light transmittance of the LED flexible transparent film screen is as high as 90%, which can present a bright and bright image effect, making the image of the product more eye-catching, and the super color creates an excellent visual experience for users.
The p15 LED flexible transparent film screen is widely used in glass curtain walls, shopping mall advertisements, exhibitions, etc. Display, creative art landscape, and other scenes.

LED crystal film screens 55
led crystal film screen 02

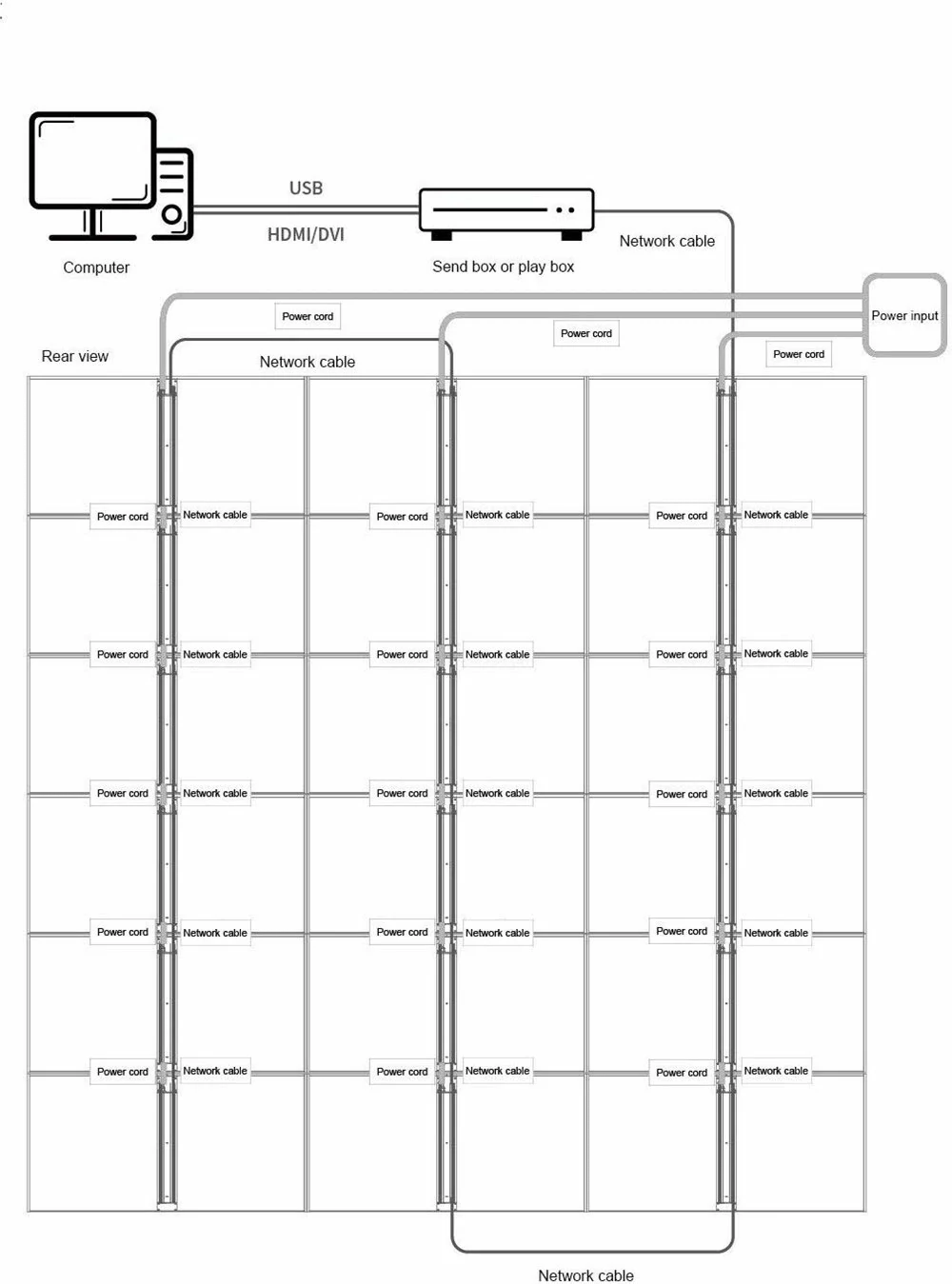

The LED flexible transparent film screen of installation is very easy

No steel structure is required, just stick the flexible LED film screen slightly and connect the power signal

Self-developed glue-filling process (the screen body with its own viscosity can be directly attached to the glass surface, with strong colloid adsorption, and the viscosity will also increase with the passage of time due to the inherent characteristics of the colloid)

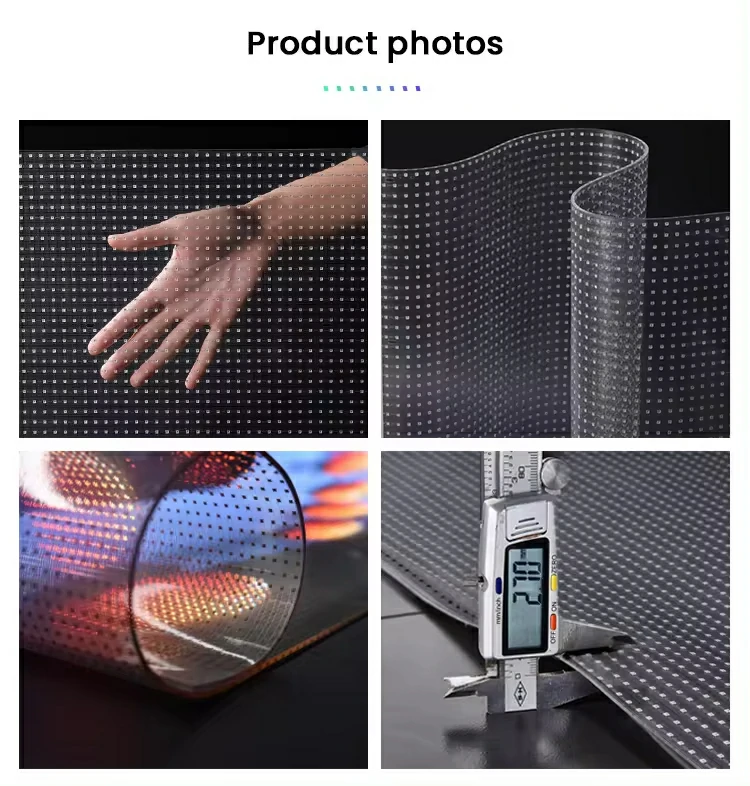

led crystal film screens 02
led crystal film screens 01

flexible LED film screen detailed installation video

The convenience brought by an ultra-thin flexible led screen

Transform your indoor space with our state-of-the-art indoor ultra-thin flexible LED screen. Our cutting-edge technology brings vibrant visuals to life, creating immersive and captivating experiences for any audience.
Our flexible LED display film for advertising indoors are designed to meet the demands of various applications, from corporate boardrooms and retail showrooms to sports arenas and entertainment venues. With high-resolution displays, brilliant color reproduction, and seamless performance, our indoor flexible LED display film delivers crystal-clear images and videos, ensuring your message or content stands out.
Customization is at the heart of our indoor-led screen solutions. We offer a wide range of screen sizes, shapes, and configurations to suit your unique requirements. Whether you need a large video wall for a trade show or a sleek, curved display for a museum exhibit, we have you covered.
Beyond exceptional visual quality, our indoor-led video walls are energy-efficient and eco-friendly, helping you reduce your carbon footprint while lowering operational costs. Plus, they are easy to install, maintain, and integrate into your existing infrastructure.
Experience the future of visual communication and entertainment with our indoor-led advertising screens. Elevate your space, engage your audience, and make a lasting impression. Contact us today to explore our range of indoor led screen display solutions tailored to your needs.

thin flexible led display
ModelP6P6.25P8P10P15P20
Module size (mm)816*3841000*4001000*4001000*400990*3901000*400
LED lightREE1515REE1515REE1515REE1515REE2022REE2022
Pixel compositionR1G1B1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B1
Pixel spacing (mm)6*66.25*6.258*810*1015*1520*20
Module pixel136*64=8704160*40=6400125*50=6250100*40=400066*26=171650*20=1000
Pixel/m22777725600165001000066252500
Brightness2000/40002000/40002000/40002000/40002000/40002000/4000
Permeability 90%90%92%94%94%95%
The angle of view °160160160160160160
Input voltage AC110-240V50/ 60HzAC110-240V50/ 60HzAC110-240V50/ 60HzAC110-240V50/ 60HzAC110-240V50/ 60HzAC110-240V50/ 60Hz
Peak power 400w/㎡600w/㎡400w/㎡400w/㎡400w/㎡400w/㎡
Average power200w/㎡200w/㎡200w/㎡200w/㎡200w/㎡200w/㎡
Work environmentTemperature – 20~55Humidity 10-90%Temperature- 20~55 Humidity 10-90%Temperature- 20~55 Humidity 10-90%Temperature- 20~55 Humidity 10-90%Temperature- 20~55 Humidity 10-90%Temperature – 20~55Humidity 10-90%
Weight1.3kg1.3kg1.3kg1.3kg1.3kg1.3kg
Thickness2.5mm2.5mm2.5mm2.5mm2.5mm2.5mm
Drive modestatic statestatic statestatic statestatic statestatic statestatic state
Control systemNova/ColorlightNova/ColorlightNova/ColorlightNova/ColorlightNova/ColorlightNova/Colorlight
Typical value of life100000H100000H100000H100000H100000H100000H
Grayscale level16bit16bit16bit16bit16bit16bit
Refresh rate3840Hz3840 Hz3840 Hz3840Hz3840 Hz3840 Hz

If you have any questions about the product or want to know more about price specifications, please fill out the form and send us a letter. Libra will respond to you within 12 hours.


    INDUSTRY  APPLICATION

    ultra thin flexible led display6

    Exhibition,Catering industry,Leasing industry etc.

    ultra thin flexible led display5

    Real estate center,Financial center,Commercial complex etc.

    ultra thin flexible led display4

    Education industry,Scenic spots,Municipal projects etc.
