52 inches 4K splicing square LCD monitor feature.

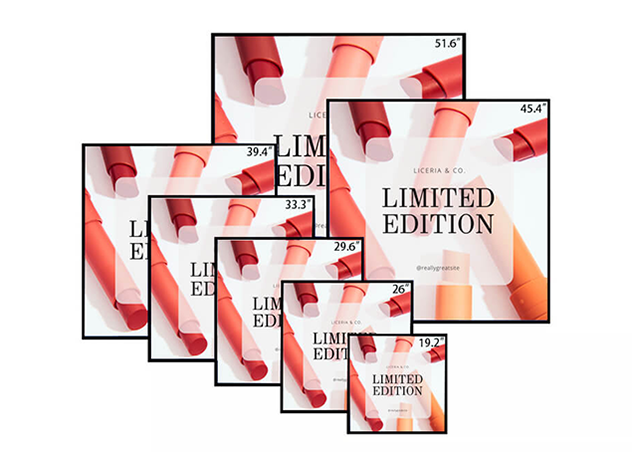

The 52 inches square LCD monitor that can be spliced uses a BOE brand LCD screen, which has pure and rich colors, delicate picture quality, and a high-end and beautiful appearance with sharp corners of sheet metal die stamping. The sizes of the square LCD monitor we provide are 19.2 inches, 26 inches, 29.6 inches, 33.3 inches, 39.4 inches, 45.4 inches, 51.6 inches, 59.4 inches, 67.6 inches, 76.3 inches, etc. Currently, the splicing function can be realized, and the advertising creativity is very good, which is deeply favored by customers.
52 inches large square LCD monitor provides the following product warranty and technical support services
All electrical parts are guaranteed for twelve months
Provide professional free product technical services
12 years of industry experience
High-quality engineering
52 inches square LCD monitor splicing method and display effect
Our square LCD monitor can be spliced in the following ways: horizontally, vertically, or at different angles to form a puzzle-like creative advertising screen with beautiful display effects.

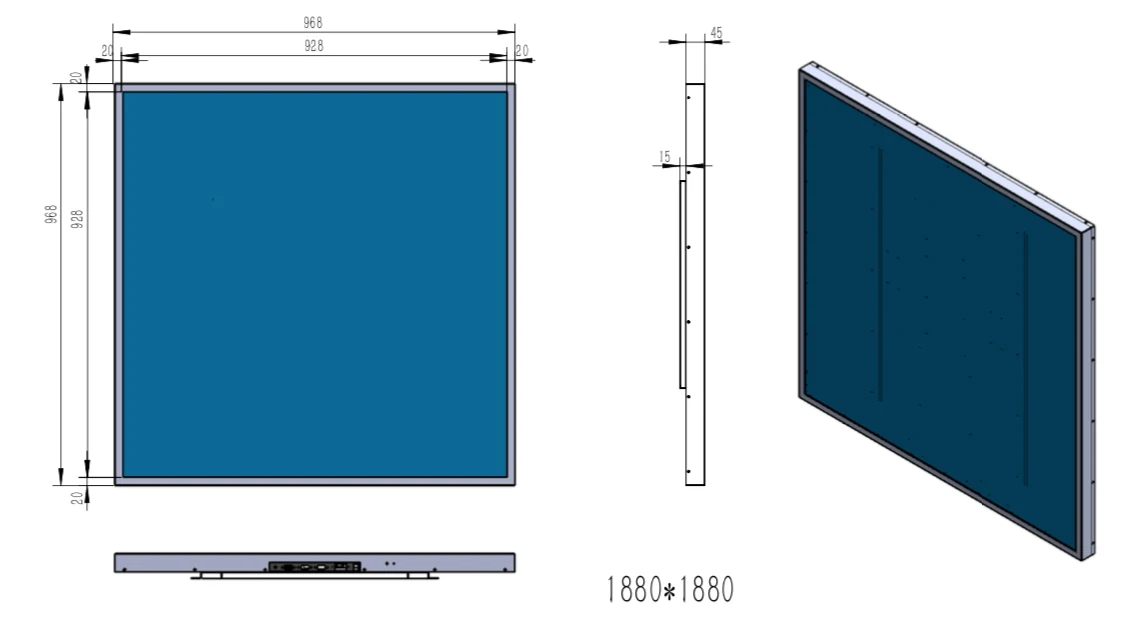

52 inches Square LCD monitor size
52 inches Large Square LCD monitor Specification
| TFT Panel | |||
| Panel size | 51.6inch TFT-LCD | ||
| Display area(mm)/mode | 928(H)*928(V) | ||
| Maximum resolution | 1900*1900 | ||
| Aspect ratio | 1:1 | ||
| Display color | 16.7M | ||
| Brightness (nits) | 500cd/㎡ | ||
| Contrast | 1000:1 | ||
| Visual angle | 178°/178° | ||
| Response time | 6ms | ||
| Life(hrs) | >60,000(hrs) | ||
| Interface | HDMI, RJ-45, USB | ||
| Operating system | |||
| System | Android 9.0 | ||
| RAM | 2G | ||
| ROM | 16G | ||
| Wi-Fi | Wi-Fi 802.11 | ||
| Appearance | |||
| Color/appearance | Black or white | ||
| Case | Aluminum alloy wrap-around cover, Metal structure. | ||
| Installation | Wall-mounted | ||
| Electricity | |||
| Power supply | AC100~240V 50 /60 HZ | ||
| Maximum power consumption | 42W | ||
| Power termination | Integrated circuit breaker | ||
| Speaker | 2*3W | ||
| Temperature | |||
| Working temperature | 0℃～40℃ | ||
| Storage temperature | -10℃~60℃ | ||
| Working humidity | 85% | ||
| Storage humidity | 85% | ||
square LCD monitor Various Solutions
| USB | Android/Wifi | Windows | |
| Content update method | Insert U-Disk | CMS or U Disk | CMS or U Disk |
| Operating system | Stand-alone | Android 9.0 | Windows 10/Linux |
| HD 1080P | YES | YES | YES |
| Intelligent split screen | YES | YES | YES |
| Time Switch | YES | YES | YES |
| Automatic Recognition | YES | YES | YES |
| Wi-Fi network | NO | YES | YES |
| Remote control management | NO | YES | YES |
| APP installation | NO | YES | YES |
| Web surfing | NO | YES | YES |
| CPU | NO | T972 | Intel Celeron J1900/Intel Core i3/i5/i7 |
| RAM | NO | 2GB/4GB | 2GB/4GB/8GB |
| SSD | NO | 16GB/32GB | 64GB/128GB/256GB |
| Interface | HDMI | USB*2, Wifi, LAN, HDMI, VGA | USB2.0*2, USB3.0*2, HDMI*1, VGA*1 |
| Speaker | NO | 2*5W | 2*5W |
| CMS | NO | Yes, for free | NO |
| Multiple Language | English | Yes, could be your local language | Yes, could be your local language |
| Suitable for | Small amount of terminals that don`t require CMS | Interactive customer experience | Interactive information display with web browser |

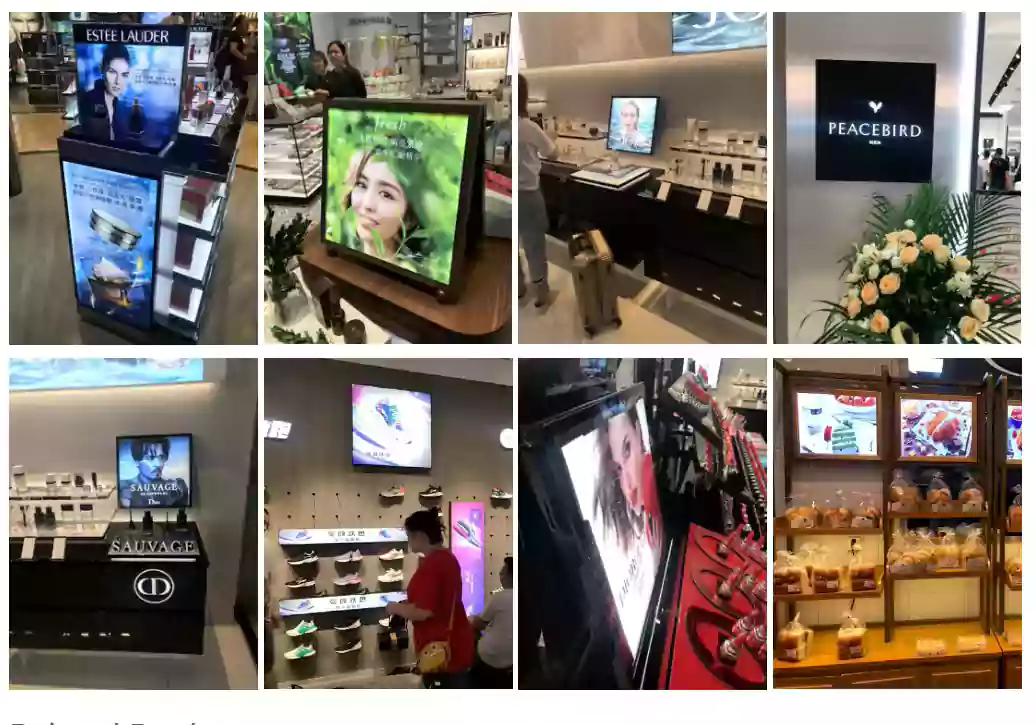

52″ Square LCD monitor Application Scenario
Widely used to meet your needs in various scenarios:
Shopping mall windows/interior decoration/school/art exhibition hall/corporate exhibition hall/hospital
If you have any questions about the product or want to know more about price specifications, please fill out the form and send us a letter. Libra will respond to you within 12 hours.
INDUSTRY APPLICATION
SHARE IT WITH YOUR FRIENDS!
Related Projects

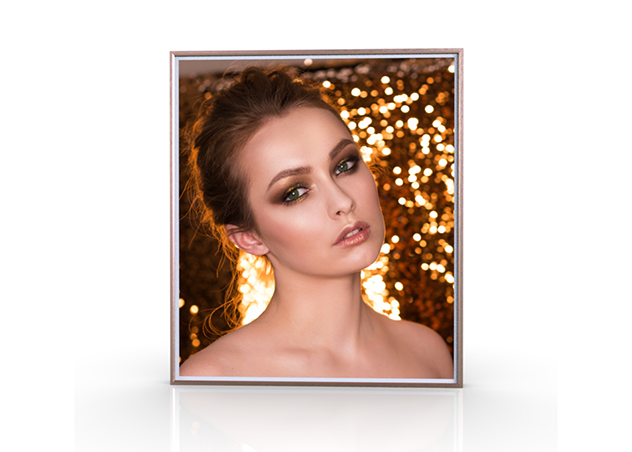

27.6",29.5",35.7'' High-Gamut Square Art Screen LCD Monitor Photo Frame
