35.7-inch square screen
35.7″ picture frame square screen, 4K HD high color gamut display, aluminum alloy and solid wood ultra-narrow frame, and other features in one. 4K HD high color gamut display brings true fine picture quality and colorful colors. Support custom sizes to meet your different space needs. Mobile phone publishing management software is easy to operate, changing the content layout and publishing at any time, and is widely used in science and technology museums, museums, home decoration business places, etc. Enjoy art, display precious cultural relics, and create a unique space.
35.7″ square screen video Introduction
35.7″ square screen Feature introduction
- Support real-time management and release on mobile phones, iPads, and PCs.
- Support remote upgrade of advertising machine software version and OTA upgrade.
- Support advertising machines in the same group to play synchronously and consistently, with a synchronization interval of less than 500ms.
- Support mobile phones in remotely setting the properties of the advertising machine, controlling the volume, rotation angle, time zone, power on and off of the advertising machine, etc.
- Support remote monitoring of the network status, system status, and hardware status of the advertising machine, and monitor the content played by the advertising machine.
- Support multiple forms of rolling subtitles and barrages. The font, size, and content of subtitles and barrages can be edited.
- Scheduling supports multiple priorities, including shim/normal/interruption/emergency message priorities.
- Scheduling supports multiple cycle modes, daily/weekly/monthly cycles.
- Can support video/picture/marquee/subtitle/RSS/component/ppt/pdf and other media.
- Supports self-built templates to be called and modified at any time with one click.
Mobile phone releases multiple file formats
Support web crawling Support multiple video formats Support multiple image formats Support PPT/PDF file format Support APK software window
Mobile remote control
Connect via WIFI and turn your phone into a universal remote control
You can remotely control the on/off, volume, and screen rotation of the advertising machine to make your operation more convenient and quick.

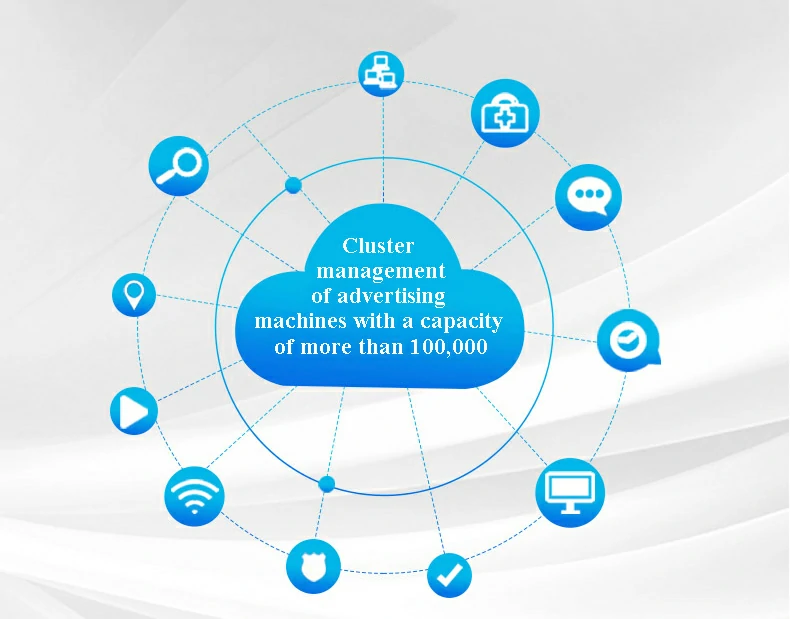

P2P cloud service comprehensive management of multiple types of advertising terminals
Our system not only supports network cloud services but also supports cascade control and management of cloud servers
Theoretically, it can access the unified management of hundreds of thousands of playback terminals
35.7″ square screen Specifications
| Display Parameters | Panel size | 35.7″ |
| Panel type | a-Si TFT-LCD | |
| Display area | 598.5mm(H)x680.4mm (V) | |
| Aspect ratio | >3:1 | |
| Resolution | 1866 x 1866/ 255 x 1866 | |
| Display color | 16.7M | |
| Dot pitch | 0.315×0.315 mm (H×V) | |
| Brightness | 500CD | |
| Contrast ratio | 3000:1 | |
| Viewing angle | 178° | |
| Response time | 8ms | |
| Refresh rate | 60Hz | |
| Menu language | Chinese/English | |
| Display Interface | Video interface | NA |
| Audio interface | N/A | |
| Other interfaces | N/A | |
| System parameters | CPU | ARM Cortex-A55 |
| RAM | 2G DDR3 | |
| ROM | 16G EMMC | |
| WIFI | 2.4G WIFI 802.11b : DQPSK, DBPSK, CCK 802.11g/n : 64-QAM,16-QAM, QPSK, BPSK | |
| Bluetooth | N/A | |
| Network port | N/A | |
| Interface support | USB×1,Type-c x 1 | |
| System version | Android 9.0 | |
| Power supply | Input voltage | ～AC 100-240V 50/60Hz |
| Maximum power consumption | ≤58W | |
| Standby power consumption | ≤0.1W（Board only） | |
| Others | Storage temperature | -20–60° |
| Power consumption of amplifier | 1×1.3W | |
| Product dimensions | 612.4mm×704.8mm×23.9mm | |
| Net weight of the product | 12.4KG | |
| Installation method | Wall-mounted installation | |
| Wall mounting hole position | 500mm x 500mm | |
| Accessories | Remote control | x1 |
| Warranty card, certificate of conformity | x1 |

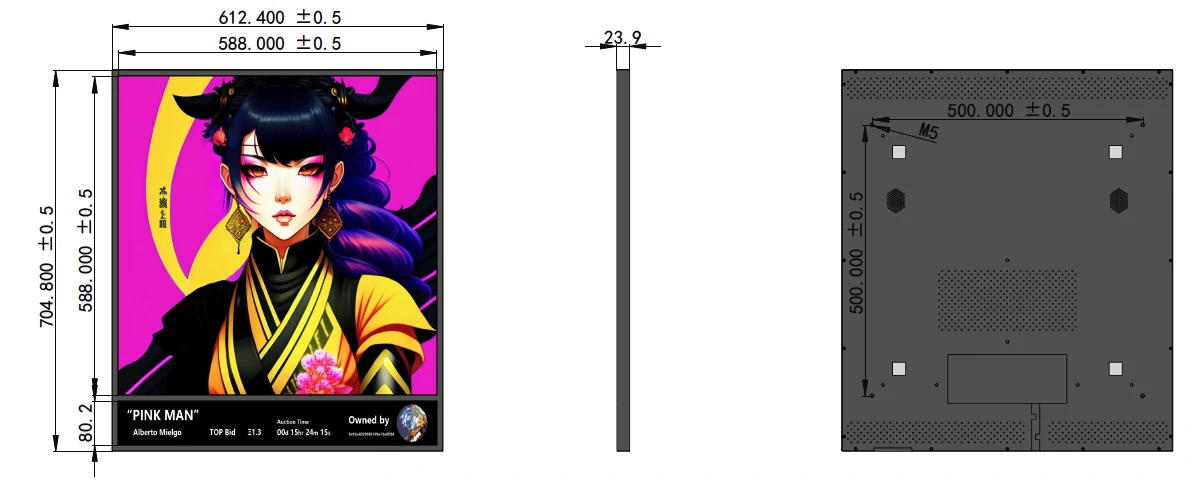

35.7″square screen size
35.7″square screen Application scenario
Widely used to meet your needs in various scenarios:
Shopping mall windows/interior decoration/school/art exhibition hall/corporate exhibition hall/hospital
