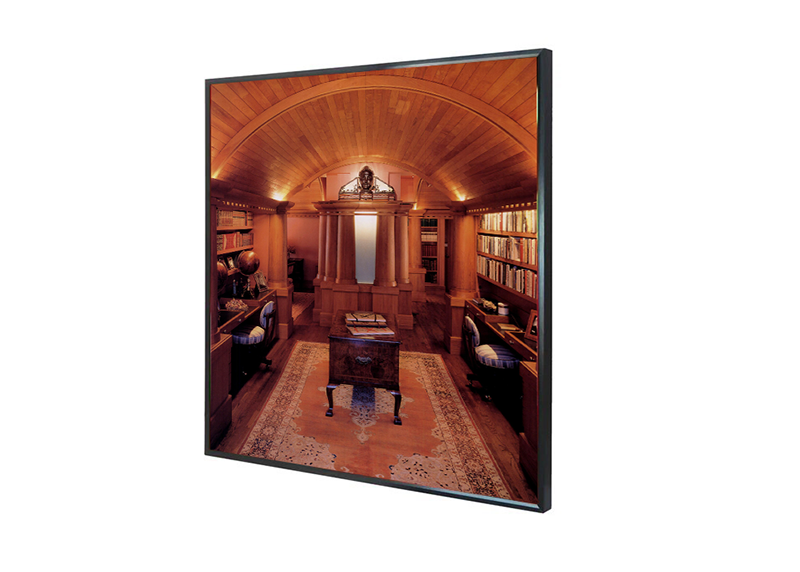

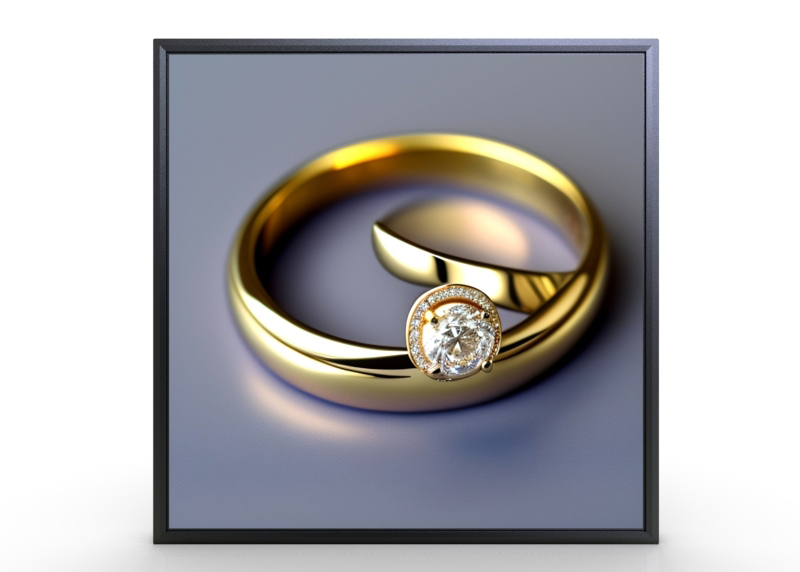

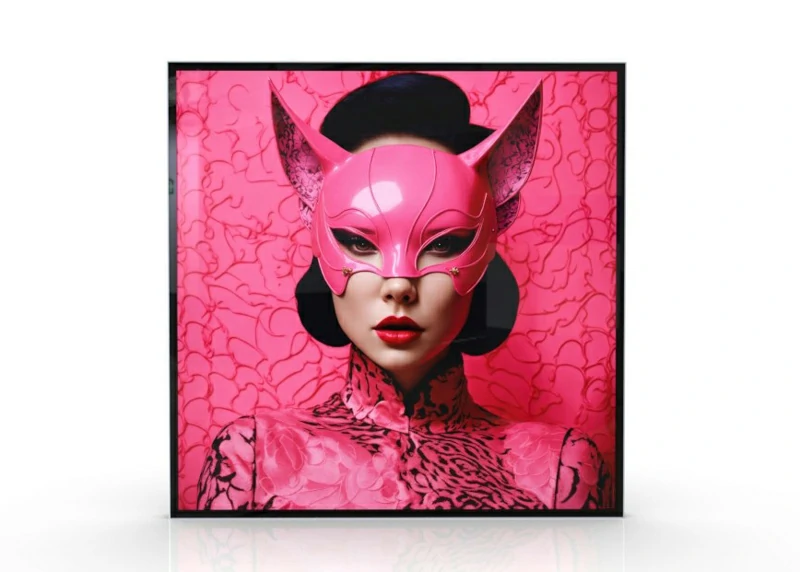

29.5″ square screen ultra-thin tempered glass
29.5″ LCD The square screen restores the real texture of the painting and shows the high pixel quality. At the same time, its viewing angle is as high as 178 degrees, which can achieve near, far and front test are not affected.
29.5″ square screen Feature introduction
- Support real-time management and release on mobile phones, iPads, and PCs.
- Support remote upgrade of advertising machine software version and OTA upgrade.
- Support advertising machines in the same group to play synchronously and consistently, with a synchronization interval of less than 500ms.
- Support mobile phones in remotely setting the properties of the advertising machine, controlling the volume, rotation angle, time zone, power on and off of the advertising machine, etc.
- Support remote monitoring of the network status, system status, and hardware status of the advertising machine, and monitor the content played by the advertising machine.
- Support multiple forms of rolling subtitles and barrages. The font, size, and content of subtitles and barrages can be edited.
- Scheduling supports multiple priorities, including shim/normal/interruption/emergency message priorities.
- Scheduling supports multiple cycle modes, daily/weekly/monthly cycles.
- Can support video/picture/marquee/subtitle/RSS/component/ppt/pdf and other media.
- Supports self-built templates to be called and modified anytime with one click.
Mobile phone releases multiple file formats
Support web crawling Support multiple video formats Support multiple image formats Support PPT/PDF file format Support APK software window
Mobile remote control
Connect via WIFI and turn your phone into a universal remote control
You can remotely control the on/off, volume, and screen rotation of the advertising machine to make your operation more convenient and quick.
P2P cloud service comprehensive management of multiple types of advertising terminals
Our system not only supports network cloud services but also supports cascade control and management of cloud servers
Theoretically, it can access the unified management of hundreds of thousands of playback terminals
29.5″ square screen video Introduction
29.5″ square screen Specifications
Display parameters | Panel size | 29.5″ |
Panel type | a-Si TFT-LCD | |
Display area | 529.42mm(H)x529.42mm (V) | |
Aspect ratio | 1:1 | |
Resolution | 2160×2160 | |
Display color | 16.7M | |
Dot pitch | 0.2451×0.2451 mm | |
Brightness | 400CD | |
Contrast ratio | 3000:1 | |
Viewing angle | 178° | |
Response time | 8ms | |
Refresh rate | 60Hz | |
Menu language | Chinese/English | |
Display Interface | Video interface | N/A |
Audio interface | N/A | |
Other interfaces | N/A | |
System parameters | CPU | ARM Cortex-A55 |
RAM | 2G DDR3 | |
ROM | 16G EMMC | |
WIFI | 2.4G WIFI 802.11b : DQPSK, DBPSK, CCK 802.11g/n : 64-QAM,16-QAM, QPSK, BPSK | |
Bluetooth | N/A | |
Network port | N/A | |
Interface support | TF Card×1/USB×1 Type-cX1 | |
System version | Android 9.0 | |
Power supply | Input voltage | ~AC 100-240V 50/60Hz |
Maximum power consumption | ≤65W | |
Standby power consumption | ≤0.1W(Board only) | |
Others | Storage temperature | -20–60° |
Power consumption of amplifier | 1×1.3W | |

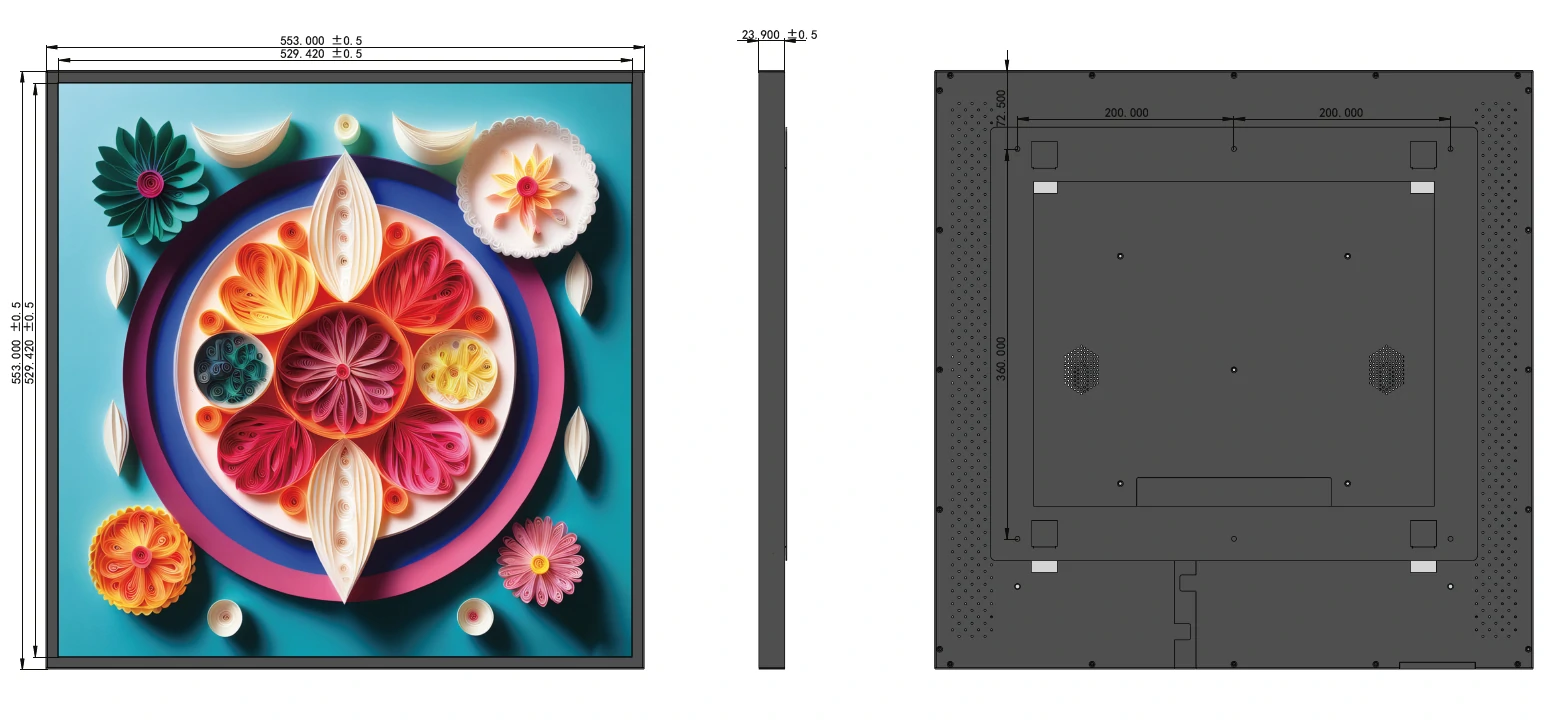

Product dimensions | 553×553×23.9mm | |
Net weight of product | 8.5KG | |

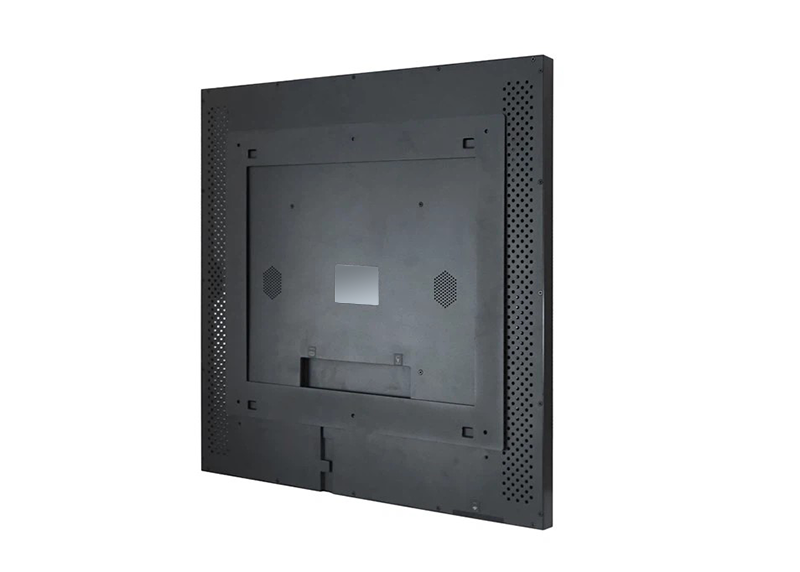

Installation method | Wall-mounted installation | |
Wall mounting hole position | 400mm x 360mm | |
Accessories | Remote control | x1 |
Warranty card, certificate of conformity | x1 |
