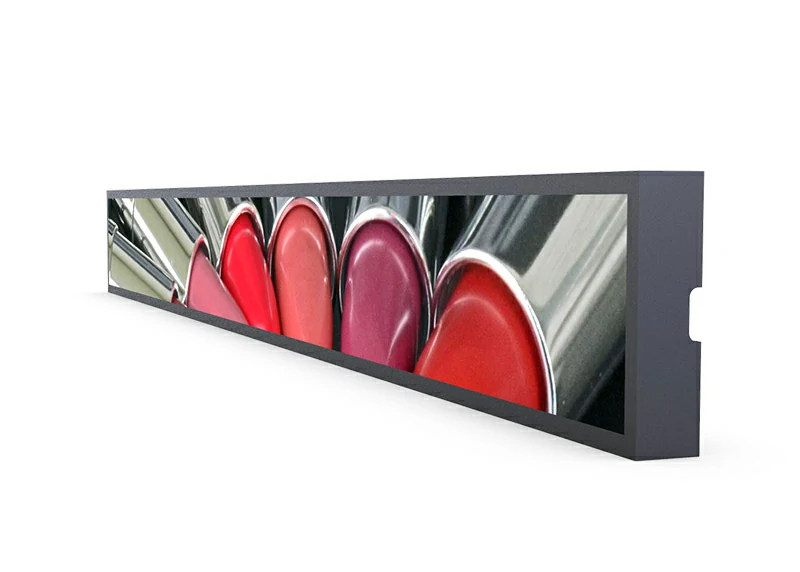

HD smart shelf edge LCD display
23.1 inch sizes Videos/pictures HD display high brightness screen Cmsontrol
Scheduling supports multiple priorities, including shim/normal/interruption/emergency message priorities.
Scheduling supports multiple cycle modes, daily/weekly/monthly cycle.
shelf bar screen support customization
High bright splicing display
Landscape/portrait multi-option
Precision design and process
Remote management
Support mobile phone to remotely set the properties of the advertising machine, control the
volume, rotation angle, time zone, power on andoff of the advertising machine, etc.
Support remote monitoring of the network status, system status and hardware status of the
advertising machine, and monitor the content played by the advertising machine.

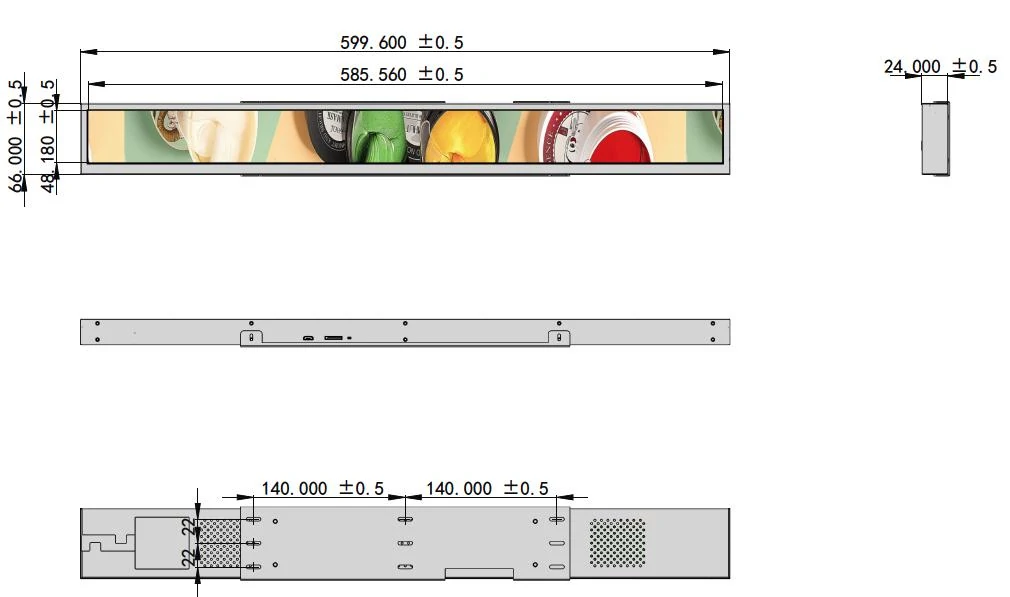

Shelf edge LCD screen size
Shelf edge LCD screen wide application occasions
| Display parameters | Screen size | 23.1″ |
| Panel type | a-Si TFT-LCD | |
| Display area | 585.56mm x 48.18mm | |
| Display ratio | >3：1 | |
| Resolution | 1920 x 158 | |
| Display color | 16.7M | |
| Point distance | 0.305(H) × 0.305V)mm | |
| Brightness | 500CD | |
| Contrast ratio | 1500：1 | |
| Viewing angle | 178° | |
| Response time | 8ms | |
| Refresh frequency | 60Hz | |
| Menu language | Chinese/English | |
| Display interface | Video interface | NA |
| Audio port | N/A | |
| Other interfaces | N/A | |
| System parameters | CPU | ARM Corter-A35 Quad core |
| RAM | 1G DDR3 | |
| ROM | 8G EMMC | |
| WIFI | 2.4G WIFI 802.11b : DQPSK, DBPSK, CCK 802.11g/n : 64-QAM,16-QAM, QPSK, BPSK | |
| Bluetooth | N/A | |
| Network port | N/A | |
| Interface support | TF Card×1/OTG×1/Type-c×1 | |
| System version | Android 8.1 | |
| Touch | 10-point touch | Optional |
| Power supply | Input voltage | ～AC 100-240V 50/60Hz |
| Maximum power consumption | 20W | |
| Standby power consumption | ≤0.1W（Board only） | |
| Others | Storage temperature | -20–60° |
| Amplifier power | 1×1.3W | |
| Product Size | 599.6×66×24mm | |
| Package Size | ||
| Product net weight | 0.6KG | |
| Accessories | Remote control | N/A |
| AC power adapter | AC 12V/3A | |
| Wall mount bracket | With | |
| Warranty card, certificate of conformity | x 1 | |
| Column 1 Value | Column 2 Value |
