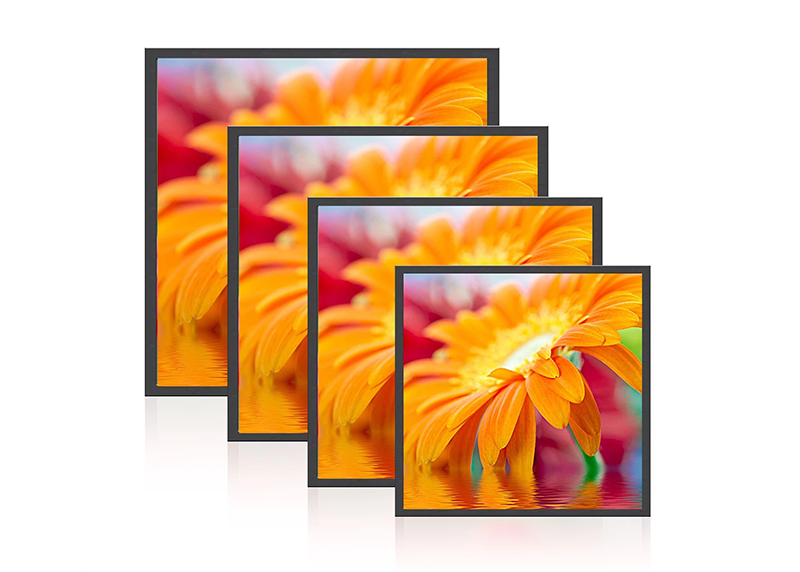

22″ square screen ultra-thin appearance
22 inch square LCD screen with high definition and high color gamut, restores the real texture of painting, displays high pixel quality, and has a viewing angle of up to 178 degrees, which is not affected by viewing from far or near.
22″ square screen Feature introduction
- Support real-time management and release on mobile phones, iPads, and PCs.
- Support remote upgrade of advertising machine software version and OTA upgrade.
- Support advertising machines in the same group to play synchronously and consistently, with a synchronization interval of less than 500ms.
- Support mobile phone to remotely set the properties of the advertising machine, control the volume, rotation angle, time zone, power on and off of the advertising machine, etc.
- Support remote monitoring of the network status, system status and hardware status of the advertising machine, and monitor the content played by the advertising machine.
- Support multiple forms of rolling subtitles and barrages. The font, size and content of subtitles and barrages can be edited.
- Scheduling supports multiple priorities, including shim/normal/interruption/emergency message priorities.
- Scheduling supports multiple cycle modes, daily/weekly/monthly cycle.
- Can support video/picture/marquee/subtitle/RSS/component/ppt/pdf and other media.
- Supports self-built templates to be called and modified at any time with one click.
22″ square screen Specifications
| Display parameters | Panel size | 22″ |
| Panel type | a-Si TFT-LCD | |
| Display area | 387.72mm(H)x387.72mm (V) | |
| Aspect ratio | 1:1 | |
| Resolution | 1440×1440 | |
| Display color | 16.7M | |
| Dot pitch | 0.26925×0.26925 | |
| Brightness | 550CD | |
| Contrast ratio | 1200:1 | |
| Viewing angle | 178° | |
| Response time | 8ms | |
| Refresh rate | 60Hz | |
| Menu language | Chinese/English | |
| Display Interface | Video interface | NA |
| Audio interface | N/A | |
| Other interfaces | N/A | |
| System parameters | CPU | ARM Cortex-A55 Quad core |
| RAM | 2G DDR3 | |
| ROM | 16G EMMC | |
| WIFI | 2.4G WIFI | |
| Bluetooth | N/A | |
| Network port | 802.11b : DQPSK, DBPSK, CCK802.11g/n : 64-QAM,16-QAM, QPSK, BPSK | |
| Interface support | TF Card×1/USB×1, DCIN×1 | |
| System version | Android 9.0 | |
| Power supply | Input voltage | ～AC 100-240V 50/60Hz |
| Maximum power consumption | ≤46W | |
| Standby power consumption | ≤0.1W（Board only） | |
| Others | Storage temperature | -20–60° |
| Power consumption of amplifier | 1×1.3W | |
| Product dimensions | 599.6×66×24mm | |
| Net weight of product | 4.6KG | |
| Installation method | Wall-mounted installation | |
| Wall mounting hole position | 320mmx344mm | |
| Accessories | Remote control | x1 |
| Warranty card, certificate of conformity | x1 |

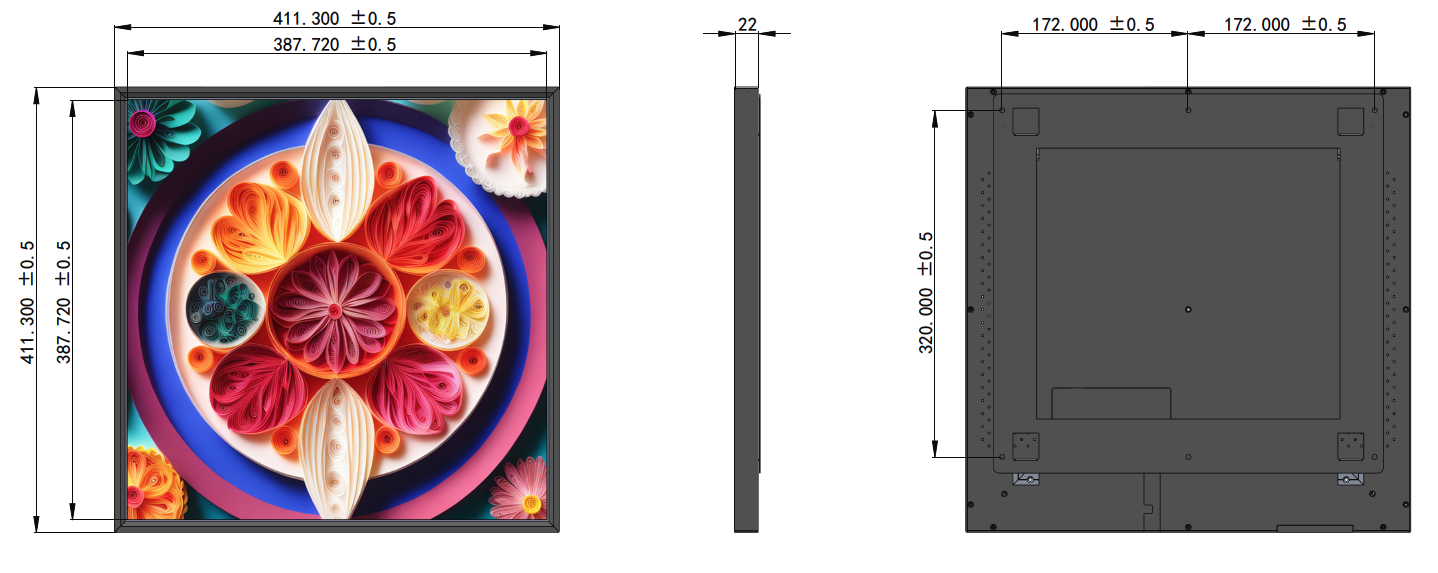

22″ square screen size
22″square screen Application scenario
Widely used to meet your needs in various scenarios:
Shopping mall windows/interior decoration/school/art exhibition hall/corporate exhibition hall/hospital
